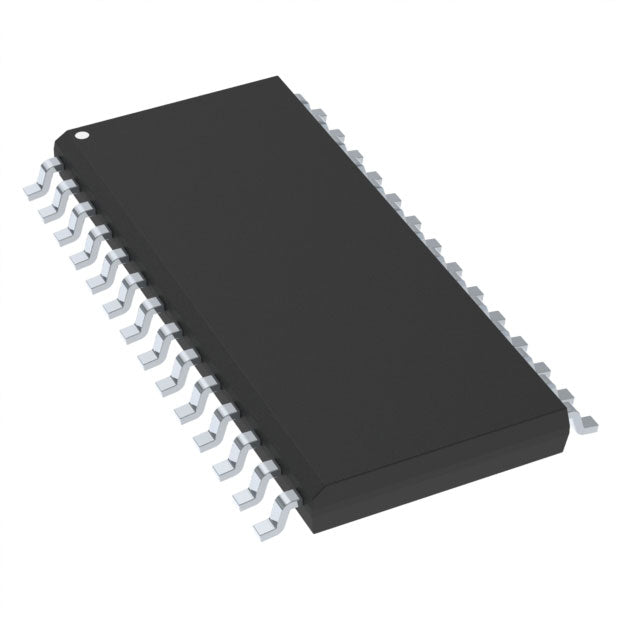

Analog Devices Inc. LTC1419AISW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $62.23 | $62.23 |
| 15+ | $60.27 | $904.05 |
| 25+ | $58.96 | $1,474.00 |
| 50+ | $55.68 | $2,784.00 |
| 100+ | $49.13 | $4,913.00 |
| N+ | $9.83 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 800k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| ROHS |  |
The LTC1419AISW#PBF is a high-performance 14-bit, 800k SPS analog-to-digital converter from Analog Devices. It features a sample-and-hold circuit and a parallel interface, making it suitable for demanding applications that require both speed and precision. The device operates over a wide temperature range and is available in a compact 28-pin SOIC package, ideal for space-constrained designs.
- High Speed & Precision: Combines 14-bit resolution with 800k SPS sampling, offering an excellent balance for demanding applications.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for industrial and automotive environments.
- Compact SOIC Package: The 28-pin SOIC package saves board space compared to DIP alternatives.
- Flexible Reference Options: Supports both external and internal references for design flexibility.
High-Speed Data Acquisition
The LTC1419AISW#PBF's 800k SPS sampling rate and 14-bit resolution make it ideal for high-performance data acquisition systems in aerospace and defense.
Medical Imaging
In digital X-ray or MRI systems, this ADC can digitize sensor signals with the speed and precision required for high-quality image reconstruction.
Industrial Automation
For high-speed inspection systems or precision motion control, the LTC1419 provides the necessary accuracy and speed for real-time feedback.
Telecommunications Infrastructure
In base stations, this ADC can be used for digitizing wideband signals in software-defined radio (SDR) architectures.
Scientific Instrumentation
Spectrometers and particle detectors benefit from the high resolution and speed to capture fast, low-amplitude events.
Vibration Analysis
For predictive maintenance, the LTC1419 can digitize accelerometer signals at high rates to analyze machine health.
- Q: What type of ADC is the LTC1419AISW#PBF?
- A: The LTC1419AISW#PBF is a 14-bit successive approximation analog-to-digital converter with a sample-and-hold (S/H) front end.
- Q: What is the resolution of the LTC1419AISW#PBF?
- A: It provides 14-bit resolution, offering higher precision than 12-bit ADCs while maintaining good speed.
- Q: What is the sampling rate of the LTC1419AISW#PBF?
- A: It supports a sampling rate of 800k SPS, making it suitable for high-speed, high-precision applications.
- Q: How many channels does the LTC1419AISW#PBF have?
- A: It has a single analog input channel.
- Q: What interface does the LTC1419AISW#PBF use?
- A: It features a parallel interface for high-speed data transfer.
- Q: What is the package type for the LTC1419AISW#PBF?
- A: It is available in a 28-pin SOIC (0.295", 7.50mm Width) package.
