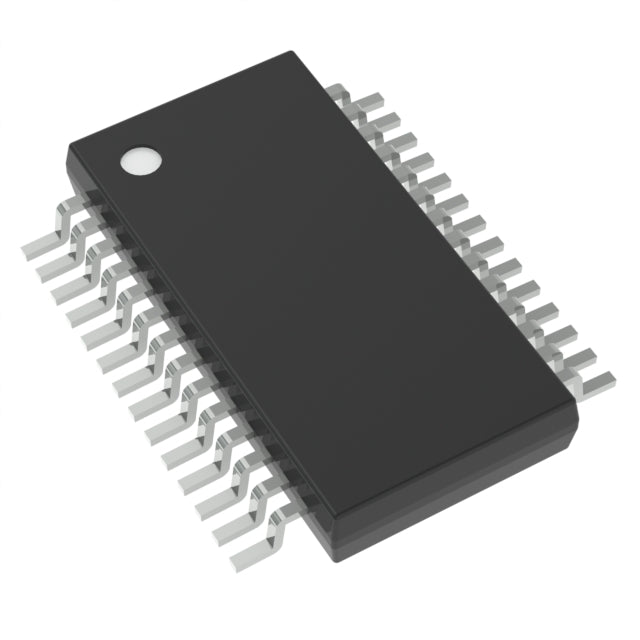

Analog Devices Inc. LTC1419CG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $37.46 | $37.46 |
| 15+ | $36.28 | $544.20 |
| 25+ | $35.49 | $887.25 |
| 50+ | $33.52 | $1,676.00 |
| 100+ | $29.57 | $2,957.00 |
| N+ | $5.91 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 800k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1419CG#PBF from Analog Devices is a high-performance 14-bit analog-to-digital converter featuring a sampling rate of 800k SPS. It integrates a sample-and-hold (S/H) function and offers a parallel interface for efficient data transfer. With a single input channel and support for both external and internal references, this ADC is designed for precision applications. It is available in a compact 28-SSOP package and operates over a 0°C to 70°C temperature range, making it suitable for a wide range of industrial and instrumentation applications.
- High-Speed Precision: 14-bit resolution at 800k SPS ensures accurate and fast conversion for demanding applications.
- Flexible Reference Options: Supports both external and internal references, providing design flexibility for various system requirements.
- Simple Parallel Interface: The parallel output simplifies connection to microcontrollers and DSPs, reducing design complexity.
- Compact Package: The 28-SSOP package saves board space, ideal for space-constrained designs.
High-Speed Data Acquisition Systems
The LTC1419CG#PBF's 800k SPS sampling rate and 14-bit resolution make it ideal for high-speed data acquisition systems where precision and speed are critical for capturing transient signals.
Industrial Process Control
With its parallel interface and single-channel design, this ADC can be easily integrated into industrial process control loops for accurate monitoring and control of analog parameters like temperature and pressure.
Medical Instrumentation
The 14-bit resolution provides the accuracy needed for medical instrumentation such as patient monitoring systems, ensuring reliable and precise conversion of biological signals.
Telecommunications
In telecommunications infrastructure, the LTC1419CG#PBF can digitize analog signals in base stations and communication links, benefiting from its high sampling rate and low latency parallel output.
Test and Measurement Equipment
For benchtop multimeters and data loggers, this ADC offers the speed and resolution required for accurate measurements, making it a solid choice for test and measurement applications.
Automotive Sensor Interfaces
Although specified for 0°C to 70°C, it can be used in automotive test systems or lab environments to digitize sensor outputs, providing high-resolution data for analysis and calibration.
- Q: What type of ADC is the LTC1419CG#PBF?
- A: It is a 14-bit successive approximation (S/H-ADC) analog-to-digital converter.
- Q: What is the resolution and sampling rate?
- A: It offers 14-bit resolution with a sampling rate of 800k SPS.
- Q: How many input channels does it have?
- A: It has a single input channel (1 channel).
- Q: What is the interface?
- A: It uses a parallel interface for data output.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C.
- Q: What package is available?
- A: It comes in a 28-SSOP package (0.209", 5.30mm Width).
