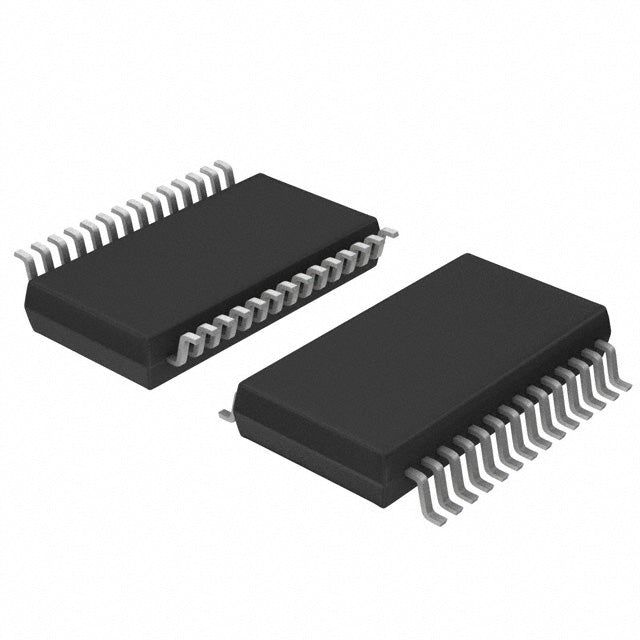

Analog Devices Inc. LTC1419IG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $28.82 | $28.82 |
| 15+ | $27.91 | $418.65 |
| 25+ | $27.31 | $682.75 |
| 50+ | $25.79 | $1,289.50 |
| 100+ | $22.76 | $2,276.00 |
| N+ | $4.55 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 800k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1419IG#PBF from Analog Devices is a high-speed 14-bit Analog-to-Digital Converter (ADC) designed for precision data acquisition applications. With a maximum sampling rate of 800k SPS and a single input channel, this ADC delivers fast and accurate conversion of analog signals. Its S/H-ADC architecture includes a sample-and-hold circuit, ensuring reliable performance with dynamic inputs. The LTC1419IG#PBF supports both external and internal references, providing flexibility in setting the input range. Operating over a -40°C to 85°C temperature range and available in a 28-SSOP package, it is well-suited for high-speed instrumentation, medical imaging, and industrial control systems.
- High-Speed Performance: The 800k SPS sampling rate enables digitization of fast-changing signals, making it ideal for high-frequency applications.
- 14-Bit Resolution: Provides excellent dynamic range and precision, ensuring accurate representation of analog signals.
- Flexible Reference Options: Support for both external and internal references allows optimization of the input range for specific applications.
- Sample-and-Hold Circuit: The integrated S/H circuit maintains signal integrity during conversion, reducing errors in dynamic signal measurement.
High-Speed Data Acquisition
The LTC1419IG#PBF's 800k SPS sampling rate and 14-bit resolution make it ideal for high-speed data acquisition systems in applications such as digital oscilloscopes, spectrum analyzers, and high-speed industrial process control.
Medical Imaging Equipment
In medical imaging systems like ultrasound and CT scanners, the LTC1419IG#PBF provides the high-speed, high-resolution conversion needed to digitize analog sensor signals with excellent fidelity.
Telecommunications Infrastructure
The high sampling rate of the LTC1419IG#PBF makes it suitable for base station receivers and other telecommunications equipment where wideband signals need to be digitized accurately.
Precision Instrumentation
For benchtop instruments such as digital multimeters and precision power supplies, the LTC1419IG#PBF offers the accuracy and speed required for reliable measurements and control.
Industrial Process Control
In high-speed industrial automation, the LTC1419IG#PBF can digitize fast-changing signals from sensors and transducers, enabling real-time monitoring and control in manufacturing processes.
- Q: What type of ADC is the LTC1419IG#PBF?
- A: The LTC1419IG#PBF is a 14-bit Analog-to-Digital Converter (ADC) with a S/H-ADC architecture, featuring a built-in sample-and-hold circuit.
- Q: What is the resolution of the LTC1419IG#PBF?
- A: The LTC1419IG#PBF provides a resolution of 14 bits, offering 16,384 discrete output levels for high-precision measurements.
- Q: What is the sampling rate of the LTC1419IG#PBF?
- A: The LTC1419IG#PBF achieves a maximum sampling rate of 800k SPS (samples per second), enabling high-speed data acquisition.
- Q: How many input channels does the LTC1419IG#PBF have?
- A: The LTC1419IG#PBF has a single input channel, optimized for dedicated high-speed signal conversion.
- Q: What interface does the LTC1419IG#PBF use?
- A: The LTC1419IG#PBF uses a parallel interface for fast and efficient data transfer to digital systems.
- Q: What is the package type for the LTC1419IG#PBF?
- A: The LTC1419IG#PBF is available in a 28-SSOP (0.209", 5.30mm Width) package.
