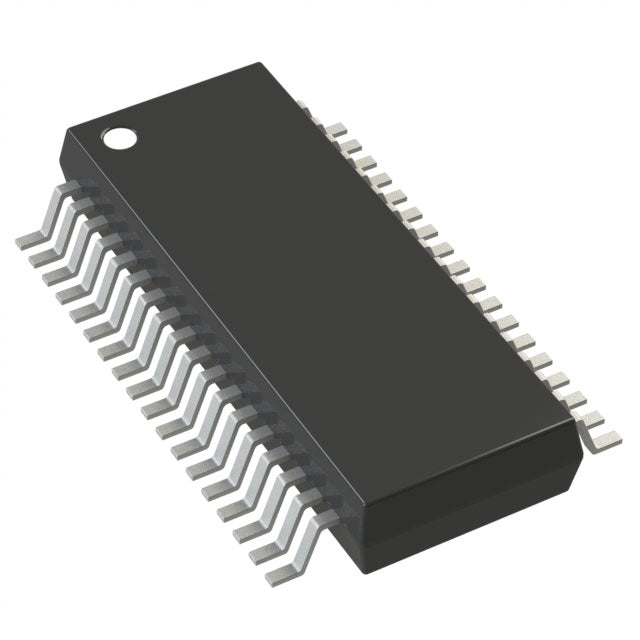

Analog Devices Inc. LTC1604AIG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $46.78 | $46.78 |
| 15+ | $45.30 | $679.50 |
| 25+ | $44.32 | $1,108.00 |
| 50+ | $41.85 | $2,092.50 |
| 100+ | $36.93 | $3,693.00 |
| N+ | $7.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 333k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 36-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 36-SSOP |
| ROHS |  |
The LTC1604AIG#PBF from Analog Devices is a 16-bit, 333 kSPS analog-to-digital converter with a parallel interface. It features a sample-and-hold architecture and supports both external and internal voltage references. Housed in a 36-SSOP package, it operates over a wide temperature range, making it suitable for precision industrial, medical, and scientific applications where accuracy and reliability are paramount.
- High Resolution: 16-bit output provides excellent dynamic range for precision measurement applications.
- Fast Parallel Interface: Enables high-speed data transfer to microprocessors and DSPs without serial latency.
- Flexible Reference: Internal or external reference options allow for system-level optimization.
- Wide Temperature Range: -40°C to 85°C ensures reliable operation in harsh environments.
- Proven S/H Architecture: Sample-and-hold design ensures accurate conversion of varying input signals.
Precision Industrial Measurement
The 16-bit resolution and 333 kSPS sampling rate provide high accuracy for industrial process control and monitoring systems.
Medical Instrumentation
Its high resolution is suitable for medical devices like patient monitors and diagnostic equipment where precise signal conversion is critical.
Seismic Data Acquisition
The low noise and high resolution make it ideal for geophysical instruments that need to capture weak signals over a wide dynamic range.
Scientific Instrumentation
Parallel interface allows fast data transfer to DSPs or FPGAs in laboratory equipment for spectroscopy or chromatography.
Automotive Test Systems
With a temperature range of -40°C to 85°C, it can be used in engine test benches and vibration analysis equipment.
Audio Processing
The 16-bit precision and sampling rate support high-fidelity audio capture in professional recording interfaces.
- Q: What is the resolution of the LTC1604AIG?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the maximum sampling rate?
- A: The LTC1604AIG supports a sampling rate of 333 kSPS (333k).
- Q: How many channels does this ADC have?
- A: It has a single input channel.
- Q: What interface does it use?
- A: It uses a Parallel interface for data transfer.
- Q: What is the architecture of this device?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: What package is the LTC1604AIG available in?
- A: It comes in a 36-SSOP package.
