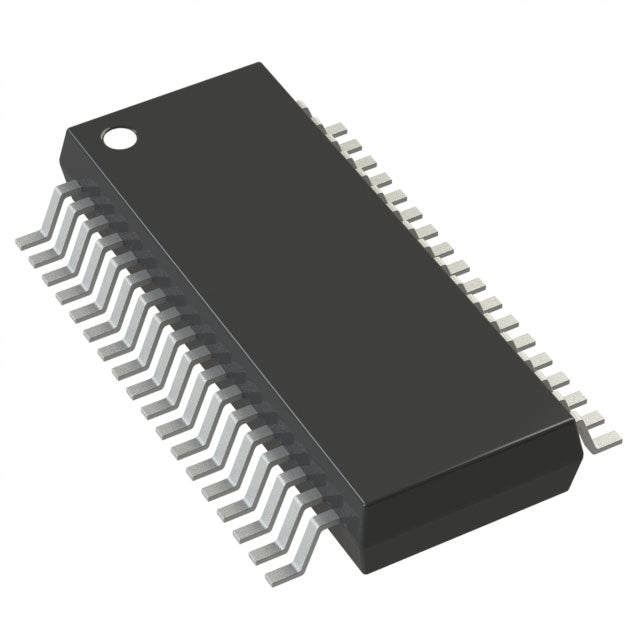

Analog Devices Inc. LTC1604CG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $45.50 | $45.50 |
| 15+ | $44.06 | $660.90 |
| 25+ | $43.10 | $1,077.50 |
| 50+ | $40.71 | $2,035.50 |
| 100+ | $35.92 | $3,592.00 |
| N+ | $7.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 333k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 36-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 36-SSOP |
| ROHS |  |
The LTC1604CG#PBF is a high-performance 16-bit analog-to-digital converter from Analog Devices, featuring a sampling rate of 333k SPS. With a single input channel and a parallel interface, it is designed for precision data acquisition applications. The S/H-ADC architecture ensures accurate sampling, while the external or internal reference options provide flexibility. It operates over 0°C to 70°C and is available in a compact 36-SSOP package, making it suitable for industrial, medical, and scientific instrumentation.
- High Resolution: 16-bit resolution provides exceptional accuracy for demanding measurement applications.
- Fast Sampling: 333k SPS sampling rate enables capture of dynamic signals without missing critical data.
- Flexible Reference: Supports both external and internal references, allowing designers to optimize for accuracy or simplicity.
- Parallel Interface: Simplifies high-speed data transfer to microcontrollers and DSPs, reducing software overhead.
- Proven Architecture: S/H-ADC design ensures reliable and consistent conversion performance.
High-Precision Data Acquisition Systems
The LTC1604CG#PBF's 16-bit resolution and 333k SPS sampling rate make it ideal for high-precision data acquisition systems where accurate representation of analog signals is critical. Its parallel interface simplifies connection to DSPs and microcontrollers.
Industrial Process Control
In industrial automation, this ADC digitizes sensor outputs (temperature, pressure, flow) with high accuracy. The 16-bit resolution ensures fine granularity in control loops, while the S/H-ADC architecture maintains signal integrity during conversion.
Medical Instrumentation
For medical devices like patient monitors or diagnostic equipment, the LTC1604CG#PBF provides the precision needed for reliable measurements. Its 0°C to 70°C temperature range suits controlled clinical environments.
Scientific Instrumentation
Laboratory equipment such as spectrometers or chromatography systems benefit from the ADC's high resolution and low noise performance, enabling accurate quantification of experimental data.
Test and Measurement Equipment
In benchtop multimeters or data loggers, the parallel interface allows for fast data throughput, while the 16-bit resolution provides the accuracy required for calibration and verification tasks.
Audio and Vibration Analysis
The high resolution makes it suitable for digitizing audio signals or vibration data in structural health monitoring, capturing subtle variations with high fidelity.
- Q: What type of ADC is the LTC1604CG#PBF?
- A: It is a 16-bit successive approximation (S/H-ADC) analog-to-digital converter with a sample-and-hold front end.
- Q: What is the resolution and sampling rate?
- A: The LTC1604CG#PBF offers 16-bit resolution and a sampling rate of 333k SPS (samples per second).
- Q: How many input channels does it have?
- A: It features a single (1) input channel.
- Q: What digital interface does it use?
- A: It uses a parallel digital interface for high-speed data transfer.
- Q: What is the operating temperature range?
- A: It is specified for commercial operation from 0°C to 70°C.
- Q: What package is available?
- A: It comes in a 36-pin SSOP package (0.209", 5.30mm Width).
