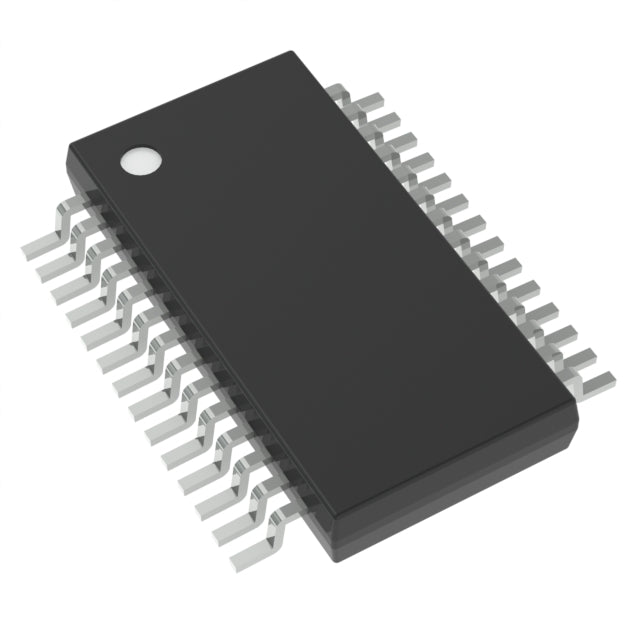

Analog Devices Inc. LTC1606AIG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $39.53 | $39.53 |
| 15+ | $38.28 | $574.20 |
| 25+ | $37.45 | $936.25 |
| 50+ | $35.37 | $1,768.50 |
| 100+ | $31.21 | $3,121.00 |
| N+ | $6.24 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1606AIG#PBF is a high-performance 16-bit analog-to-digital converter from Analog Devices, designed for precision applications. It features a maximum sampling rate of 250k SPS and a single input channel, ensuring accurate and fast data acquisition. The device utilizes a successive approximation architecture with a parallel interface for straightforward integration with digital systems. It supports both external and internal references, providing flexibility in system design. Housed in a compact 28-SSOP package, it operates reliably across an industrial temperature range of -40°C to 85°C, making it suitable for demanding environments.
- High Resolution: 16-bit resolution provides exceptional accuracy for precise measurement applications.
- Fast Sampling Rate: 250k SPS enables the capture of dynamic signals without missing critical data.
- Flexible Reference Options: Supports both external and internal references for design versatility.
- Industrial Temperature Range: Guaranteed operation from -40°C to 85°C for use in harsh environments.
- Parallel Interface: Enables high-speed data transfer to microprocessors and DSPs.
High-Precision Industrial Data Acquisition
The 16-bit resolution and 250k SPS sampling rate make it ideal for high-accuracy industrial data acquisition systems where precise voltage measurement is critical.
Medical Instrumentation
Its low noise and high resolution are suitable for medical devices like patient monitors and diagnostic equipment that require reliable, accurate signal conversion.
Automotive Sensor Interfaces
With a wide -40°C to 85°C temperature range, it can be used in automotive sensor applications for engine control and battery management systems.
Precision Weighing and Force Measurement
The high resolution ensures accurate digitization of load cell outputs, making it suitable for industrial scales and force measurement systems.
Process Control and Automation
The parallel interface allows for fast data transfer to microcontrollers in PLCs and process control loops, ensuring real-time monitoring and control.
Portable Test and Measurement Equipment
Its compact SSOP package and low power consumption enable its use in portable multimeters and data loggers.
- Q: What type of ADC is the LTC1606AIG#PBF?
- A: It is a 16-bit successive approximation (S/H-ADC) analog-to-digital converter with a parallel interface.
- Q: What is the resolution and sampling rate?
- A: The resolution is 16 bits, and the maximum sampling rate is 250k SPS (samples per second).
- Q: How many input channels does it have?
- A: It has a single (1) input channel.
- Q: What is the operating temperature range?
- A: It operates over an industrial temperature range of -40°C to 85°C.
- Q: What is the package type?
- A: It is available in a 28-SSOP (0.209", 5.30mm Width) package.
- Q: Does it require an external reference?
- A: It supports both external and internal references.
