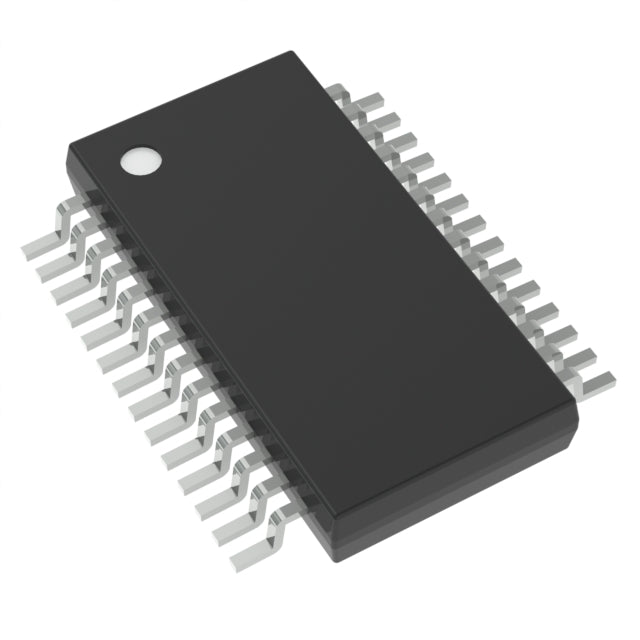

Analog Devices Inc. LTC1609CG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $34.20 | $34.20 |
| 15+ | $33.12 | $496.80 |
| 25+ | $32.40 | $810.00 |
| 50+ | $30.60 | $1,530.00 |
| 100+ | $27.00 | $2,700.00 |
| N+ | $5.40 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1609CG#PBF is a high-precision 16-bit analog-to-digital converter featuring a single input channel and a 200k SPS sampling rate. It utilizes a S/H-ADC architecture with external and internal reference options. The SPI interface enables straightforward integration with digital controllers. This ADC is ideal for precision data acquisition, industrial monitoring, and medical instrumentation, delivering reliable performance in a 28-SSOP package.
- 16-Bit Precision: Provides high-resolution conversion for accurate measurement of analog signals, essential for scientific and medical applications.
- Single-Channel Design: Simplifies system design for applications requiring only one analog input, reducing complexity.
- SPI Digital Interface: Ensures easy and fast communication with microprocessors, facilitating system integration.
- Compact Package: The 28-SSOP package saves board space, making it suitable for space-constrained designs.
Precision Data Acquisition Systems
The LTC1609CG#PBF is designed for high-accuracy single-channel data acquisition. Its 16-bit resolution and 200k SPS sampling rate ensure precise capture of analog signals in demanding applications.
Industrial Process Monitoring
In industrial settings, this ADC can be used to digitize signals from a single sensor, such as a flow meter or level sensor, providing accurate data for process control and monitoring systems.
Medical Diagnostic Equipment
The high precision of the LTC1609CG#PBF makes it suitable for medical diagnostic instruments that require accurate conversion of biological signals, such as blood pressure monitors.
Scientific Instrumentation
For laboratory equipment like spectrometers or chromatography systems, this ADC offers the resolution and stability needed for reliable scientific measurements.
Embedded Control Systems
With its SPI interface and compact 28-SSOP package, this ADC can be easily integrated into embedded systems for precise analog-to-digital conversion in control applications.
- Q: What type of ADC is the LTC1609CG#PBF?
- A: It is a 16-bit, single-channel analog-to-digital converter with a S/H-ADC architecture.
- Q: What is the resolution of the LTC1609CG#PBF?
- A: The resolution is 16 bits.
- Q: What is the sampling rate of the LTC1609CG#PBF?
- A: The sampling rate is 200k SPS.
- Q: How many input channels does the LTC1609CG#PBF have?
- A: It has 1 input channel.
- Q: What digital interface does the LTC1609CG#PBF use?
- A: It uses an SPI interface.
- Q: What is the package type for the LTC1609CG#PBF?
- A: It comes in a 28-SSOP (0.209", 5.30mm Width) package.
