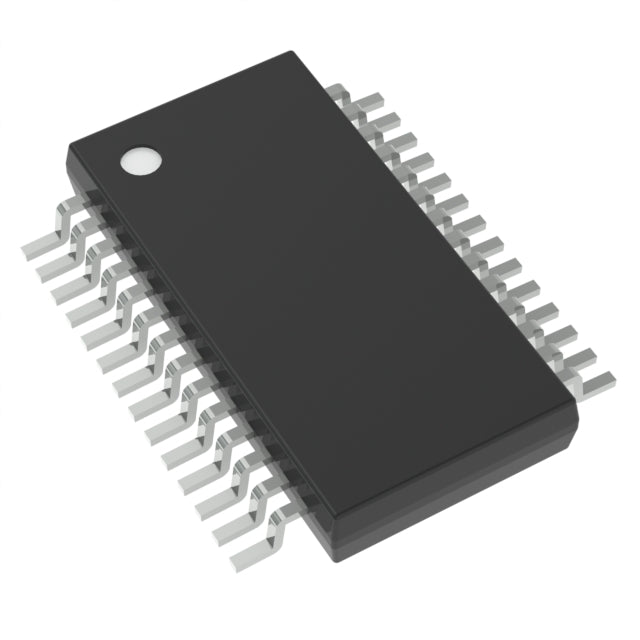

Analog Devices Inc. LTC1609IG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $36.87 | $36.87 |
| 15+ | $35.71 | $535.65 |
| 25+ | $34.93 | $873.25 |
| 50+ | $32.99 | $1,649.50 |
| 100+ | $29.11 | $2,911.00 |
| N+ | $5.82 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1609IG#PBF from Analog Devices is a high-performance 16-bit analog-to-digital converter (ADC) featuring a 200k SPS sampling rate. This single-channel device utilizes a successive approximation (S/H-ADC) architecture with a flexible SPI serial interface, making it easy to integrate with modern digital systems. It supports both external and internal voltage references, providing design flexibility. Housed in a compact 28-pin SSOP package and rated for -40°C to 85°C, it is well-suited for industrial, medical, and portable instrumentation applications requiring precision and reliability.
- High Resolution: 16-bit resolution ensures precise digital representation of analog signals, critical for measurement accuracy.
- Fast Sampling: 200k SPS throughput enables capture of dynamic signals for real-time control and analysis.
- Flexible Reference: Support for both external and internal references allows optimization of input range and accuracy.
- Industrial Temperature Range: -40°C to 85°C operation ensures reliable performance in harsh environments.
- Compact Package: 28-pin SSOP saves board space without compromising functionality.
High-Precision Data Acquisition Systems
The 16-bit resolution and 200k SPS sampling rate make the LTC1609IG#PBF ideal for multi-channel data acquisition systems requiring accurate signal digitization with a fast serial interface.
Industrial Process Control
With an operating temperature range of -40°C to 85°C, this ADC is suitable for industrial automation and process control loops where environmental robustness and reliable conversion are critical.
Medical Instrumentation
The high resolution and low noise performance support precise measurements in medical devices such as patient monitoring systems and diagnostic equipment.
Portable Instrumentation
The SPI interface and compact SSOP package enable space-constrained portable devices that require low-power, high-accuracy analog-to-digital conversion.
Sensor Signal Conditioning
Ideal for digitizing outputs from temperature, pressure, and strain sensors, the internal or external reference options provide flexibility in scaling input ranges.
Battery-Powered Devices
The efficient architecture and serial interface help minimize power consumption, extending battery life in remote or handheld monitoring applications.
- Q: What type of ADC is the LTC1609IG#PBF?
- A: It is a 16-bit successive approximation (S/H-ADC) analog-to-digital converter with a sample-and-hold front end.
- Q: What is the resolution and sampling rate?
- A: The LTC1609IG#PBF offers 16-bit resolution with a maximum sampling rate of 200k SPS (samples per second).
- Q: How many input channels does it have?
- A: It features a single (1) input channel.
- Q: What digital interface does it use?
- A: It uses a serial SPI interface for communication with microcontrollers and DSPs.
- Q: What is the operating temperature range?
- A: It is specified for industrial operation from -40°C to 85°C.
- Q: What package is available?
- A: It comes in a 28-pin SSOP package (0.209", 5.30mm Width).
