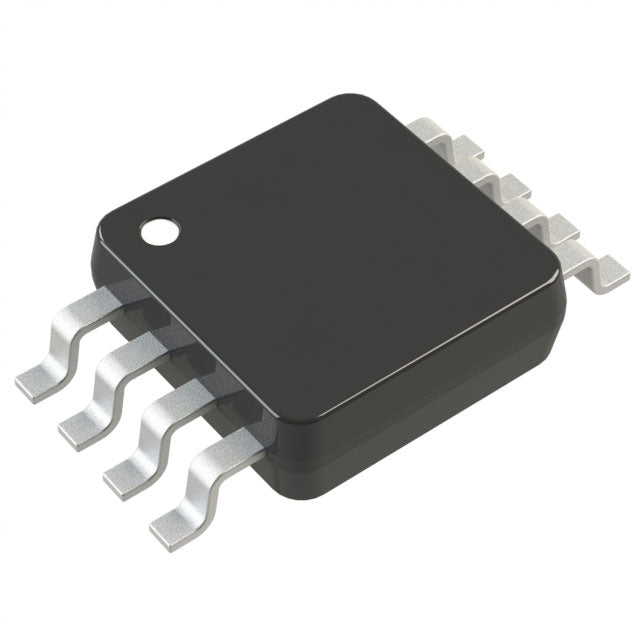

Analog Devices Inc. LTC1733EMSE#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.12 | $7.12 |
| 15+ | $6.89 | $103.35 |
| 25+ | $6.74 | $168.50 |
| 50+ | $6.37 | $318.50 |
| 100+ | $5.62 | $562.00 |
| N+ | $1.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Timer |
| Fault Protection | Over Temperature |
| Charge Current - Max | 1.5A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 6.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP |
| ROHS |  |
The LTC1733EMSE#PBF is a high-performance single-cell Lithium Ion battery charger from Analog Devices Inc. It delivers a charge current of up to 1.5A for a 4.2V battery, making it suitable for a wide range of portable devices. The charger includes over-temperature protection to ensure safe operation. Its industrial temperature range of -40°C to 85°C allows for use in demanding environments. The device is available in a compact 10-MSOP package with an exposed pad for enhanced thermal performance.
- Fast Charging: Supports up to 1.5A charge current for reduced charging times.
- Thermal Safety: Over Temperature protection prevents damage from excessive heat.
- Industrial Temperature Range: Operates reliably from -40°C to 85°C.
- Enhanced Thermal Management: The exposed pad package improves heat dissipation for high-current operation.
High-Capacity Smartphones and Tablets
The 1.5A charge current allows for faster charging of larger single-cell Li-Ion batteries found in modern mobile devices.
Digital Cameras and Camcorders
Provides a reliable charging solution for high-drain devices that require a robust 4.2V battery and benefit from higher current.
Portable Gaming Consoles
Ensures quick and safe recharging of handheld gaming systems, minimizing downtime for users.
Industrial Handhelds
With a wide temperature range, it is suitable for rugged PDAs and barcode scanners used in warehouses and field services.
Portable Medical Devices
Ideal for battery-powered medical instruments like infusion pumps and patient monitors that demand reliable performance and safety.
- Q: What battery chemistry is the LTC1733EMSE designed for?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells does it support?
- A: It supports a single-cell (1) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.5A.
- Q: What is the target battery voltage?
- A: The target battery voltage is 4.2V.
- Q: What fault protection is included?
- A: It includes Over Temperature protection.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
