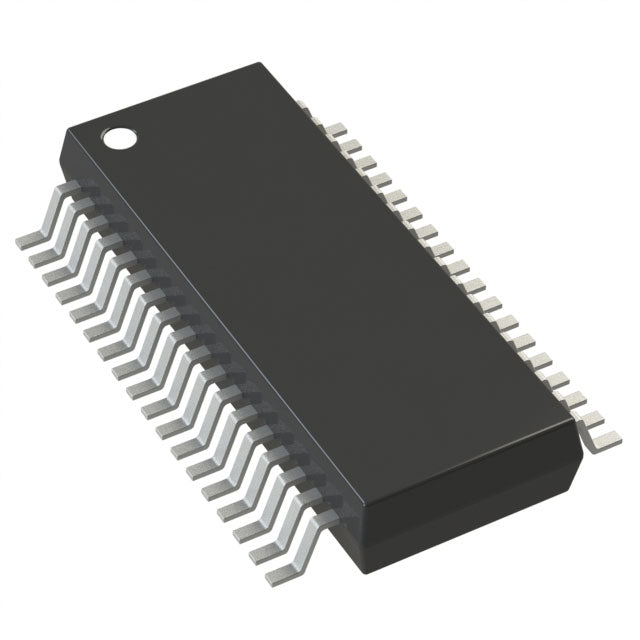

Analog Devices Inc. LTC1740IG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $43.48 | $43.48 |
| 15+ | $42.11 | $631.65 |
| 25+ | $41.19 | $1,029.75 |
| 50+ | $38.90 | $1,945.00 |
| 100+ | $34.33 | $3,433.00 |
| N+ | $6.87 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 6M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V, 5V |
| Voltage - Supply, Digital | - |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 36-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 36-SSOP |
| ROHS |  |
The LTC1740IG#PBF is a high-performance 14-bit analog-to-digital converter from Analog Devices, offering an impressive sampling rate of 6M SPS. Designed for high-speed signal processing, it features a single channel and a parallel interface for rapid data output. With both external and internal reference options and a wide temperature range, this ADC is well-suited for demanding applications in communications, test and measurement, and aerospace. The 36-SSOP package ensures a compact footprint.
- Ultra-Fast Sampling: 6M SPS captures high-frequency signals with ease.
- 14-Bit Accuracy: Maintains precision even at high speeds.
- Wide Temperature Range: Operates reliably from -40°C to +85°C.
- Flexible Reference: External or internal reference for design flexibility.
High-Frequency Signal Processing
The LTC1740IG#PBF's 6M SPS sampling rate allows digitization of high-frequency signals for radar, sonar, and communication systems.
Digital Oscilloscopes
With its high speed and 14-bit resolution, this ADC is ideal for front-end digitization in digital storage oscilloscopes.
Wireless Base Stations
In cellular base stations, the LTC1740IG#PBF can digitize IF signals for software-defined radio architectures.
Military & Aerospace
The wide temperature range (-40°C to +85°C) makes it suitable for rugged military and aerospace applications.
High-Speed Industrial Control
For fast servo control loops and high-speed automation, this ADC provides the necessary speed and accuracy.
- Q: What is the LTC1740IG#PBF?
- A: It is a 14-bit, single-channel analog-to-digital converter with a S/H-ADC architecture.
- Q: What is the resolution?
- A: The resolution is 14 bits.
- Q: What is the sampling rate?
- A: The sampling rate is 6M SPS (6 MSPS).
- Q: How many channels does it have?
- A: It has 1 input channel.
- Q: What interface does it use?
- A: It uses a parallel interface.
- Q: What is the operating temperature range?
- A: It operates from -40°C to +85°C.
