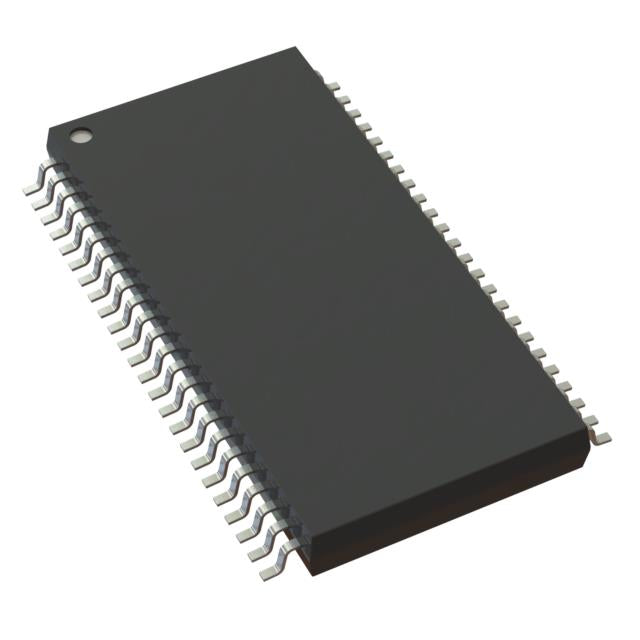

Analog Devices Inc. LTC1748IFW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $77.57 | $77.57 |
| 15+ | $75.12 | $1,126.80 |
| 25+ | $73.49 | $1,837.25 |
| 50+ | $69.40 | $3,470.00 |
| 100+ | $61.24 | $6,124.00 |
| N+ | $12.25 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 80M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP |
| ROHS |  |
The LTC1748IFW#PBF is a high-performance 14-bit analog-to-digital converter from Analog Devices, offering a sampling rate of 80 MSPS. It features a single input channel and a parallel output interface for direct connection to digital signal processors. The device supports both external and internal voltage references, providing design flexibility. Housed in a 48-pin TFSOP package, it operates over the industrial temperature range of -40°C to 85°C, making it suitable for a wide range of high-speed data acquisition and communication systems.
- High Speed & Resolution: 14-bit resolution at 80 MSPS provides excellent dynamic range for demanding applications.
- Flexible Reference: Support for both external and internal references allows designers to optimize for accuracy or simplicity.
- Parallel Output: The parallel interface ensures fast, straightforward data transfer to DSPs and microcontrollers.
- Industrial Temperature Range: Rated for -40°C to 85°C, ensuring reliable operation in industrial environments.
High-Speed Data Acquisition
The LTC1748IFW#PBF's 14-bit resolution and 80 MSPS sampling rate make it ideal for digitizing high-frequency signals in data acquisition systems for scientific and industrial applications.
Communications Receivers
Its high dynamic performance and parallel interface are well-suited for IF sampling in digital receivers used in wireless infrastructure and software-defined radio.
Medical Imaging Systems
The combination of speed and resolution enables high-quality digitization in medical imaging modalities like digital X-ray and optical coherence tomography (OCT).
Industrial Instrumentation
This ADC can be used in high-precision industrial measurement equipment, such as spectrum analyzers and vibration analysis systems, where accurate signal capture is critical.
Portable Test Equipment
With its internal reference option and wide temperature range, the LTC1748IFW#PBF is suitable for portable or field-deployed test instruments that require reliable performance.
- Q: What is the resolution of the LTC1748IFW#PBF?
- A: It is a 14-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It supports a maximum sampling rate of 80 MSPS (80M SPS).
- Q: How many channels does it have?
- A: It has a single input channel.
- Q: What interface does it use?
- A: It features a parallel digital output interface.
- Q: What is the reference type?
- A: It supports both external and internal references.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
