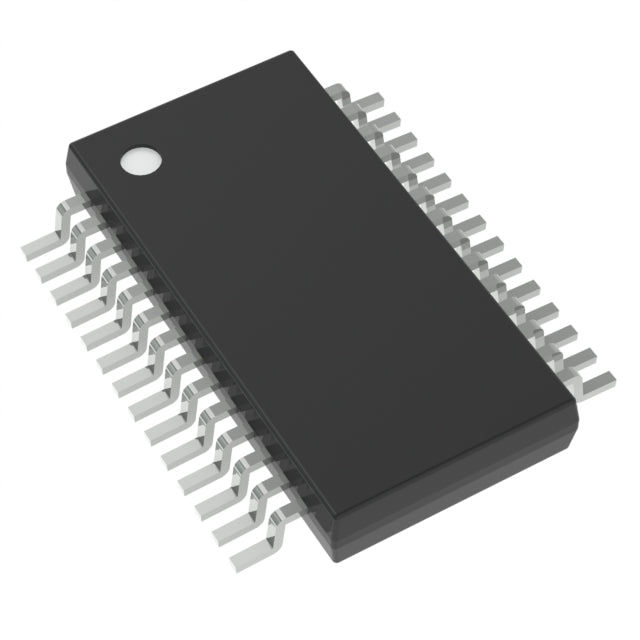

Analog Devices Inc. LTC1854CG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.90 | $14.90 |
| 15+ | $14.43 | $216.45 |
| 25+ | $14.11 | $352.75 |
| 50+ | $13.33 | $666.50 |
| 100+ | $11.76 | $1,176.00 |
| N+ | $2.35 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC1854CG#PBF is a 12-bit, 8-channel analog-to-digital converter featuring a MUX-S/H-ADC architecture. It achieves a maximum sampling rate of 100 kSPS and communicates via a standard SPI interface. The device includes an external or internal reference and operates over a commercial temperature range of 0°C to 70°C. Housed in a compact 28-SSOP package, this ADC is well-suited for industrial data acquisition, battery monitoring, and portable instrumentation applications.
- 8-Channel Multiplexing: Allows monitoring of multiple analog signals with a single ADC, reducing system cost.
- SPI Interface: Simplifies digital communication with standard microcontrollers and DSPs.
- Compact Package: The 28-SSOP package saves board space in space-constrained designs.
- Flexible Reference: Supports both external and internal references for design flexibility.
- Proven Architecture: MUX-S/H-ADC architecture ensures reliable and consistent conversion performance.
Industrial Data Acquisition
The 12-bit resolution and 100 kSPS sampling rate of the LTC1854CG#PBF make it suitable for industrial data acquisition systems that require moderate speed and accuracy.
Battery Monitoring Systems
With 8 input channels, this ADC can monitor multiple battery cells in a stack, providing accurate voltage readings for battery management systems.
Motor Control Feedback
In motor control applications, the ADC digitizes current and voltage feedback signals at 100 kSPS, enabling precise control loops for improved efficiency.
Portable Instrumentation
The SPI interface and 28-SSOP package make it easy to integrate into portable instruments where space is limited.
Environmental Monitoring
Multiple channels allow simultaneous monitoring of temperature, humidity, and pressure sensors in environmental data loggers.
Automated Test Equipment
The 8-channel multiplexer and SPI interface enable fast, sequential scanning of test points in automated test systems.
- Q: What is the LTC1854CG#PBF?
- A: It is a 12-bit, 8-channel analog-to-digital converter with a MUX-S/H-ADC architecture from Analog Devices.
- Q: What is the resolution and sampling rate?
- A: It provides 12-bit resolution with a maximum sampling rate of 100 kSPS.
- Q: How many input channels are available?
- A: The device features 8 multiplexed input channels for versatile signal acquisition.
- Q: What digital interface does it support?
- A: It uses a standard SPI interface for easy connection to microcontrollers and DSPs.
- Q: What is the operating temperature range?
- A: The LTC1854CG#PBF operates from 0°C to 70°C, making it suitable for commercial applications.
- Q: What package is it available in?
- A: It comes in a 28-pin SSOP package with a 5.30mm width.
