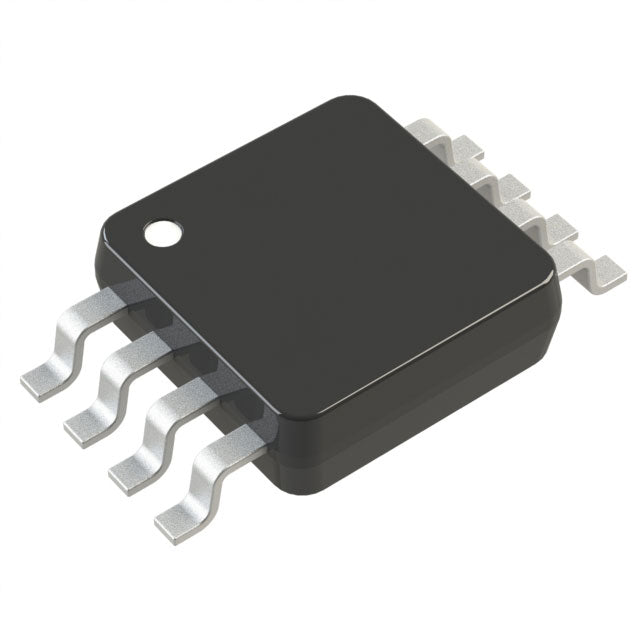

Analog Devices Inc. LTC1864LIMS8#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.18 | $17.18 |
| 15+ | $16.63 | $249.45 |
| 25+ | $16.27 | $406.75 |
| 50+ | $15.37 | $768.50 |
| 100+ | $13.56 | $1,356.00 |
| N+ | $2.71 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 150k |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| ROHS |  |
The LTC1864LIMS8#PBF is a 16-bit, single-channel analog-to-digital converter (ADC) from Analog Devices. It offers a sampling rate of 150k SPS and uses an SPI interface for communication. With a S/H-ADC architecture and external reference, it ensures high accuracy for precision measurement applications. Housed in an 8-TSSOP/MSOP package, it operates over -40°C to 85°C.
- High Accuracy: 16-bit resolution ensures precise digital representation of analog signals.
- Fast Sampling Rate: 150k SPS allows for capturing dynamic signals with good fidelity.
- Low Power Operation: Suitable for battery-powered and portable devices.
- Compact Footprint: The 8-pin MSOP/TSSOP package is ideal for space-constrained designs.
Precision Single-Channel Measurement
The LTC1864's 16-bit resolution and 150k SPS sampling rate make it ideal for high-precision single-channel measurements in laboratory instruments.
Sensor Signal Conditioning
It can accurately digitize the output of a single high-performance sensor, such as a precision pressure transducer or a high-accuracy temperature sensor.
Data Acquisition Systems
In compact data loggers, this ADC provides high-speed, accurate conversion of a single analog signal for further digital processing.
Industrial Process Monitoring
Its wide temperature range and SPI interface make it suitable for industrial environments where a single critical parameter needs to be monitored.
Portable Test Equipment
The low power consumption and small package make it perfect for handheld multimeters and other portable test devices.
- Q: What is the LTC1864LIMS8#PBF?
- A: It is a 16-bit, single-channel analog-to-digital converter (ADC) from Analog Devices.
- Q: What is the resolution and sampling rate?
- A: It provides 16-bit resolution and a sampling rate of 150k SPS.
- Q: How many input channels does it have?
- A: It has 1 input channel.
- Q: What interface does it use?
- A: It uses the SPI (Serial Peripheral Interface).
- Q: What is the architecture?
- A: It uses a S/H-ADC (sample-and-hold) architecture.
- Q: What is the package type?
- A: It is available in an 8-TSSOP or 8-MSOP package.
