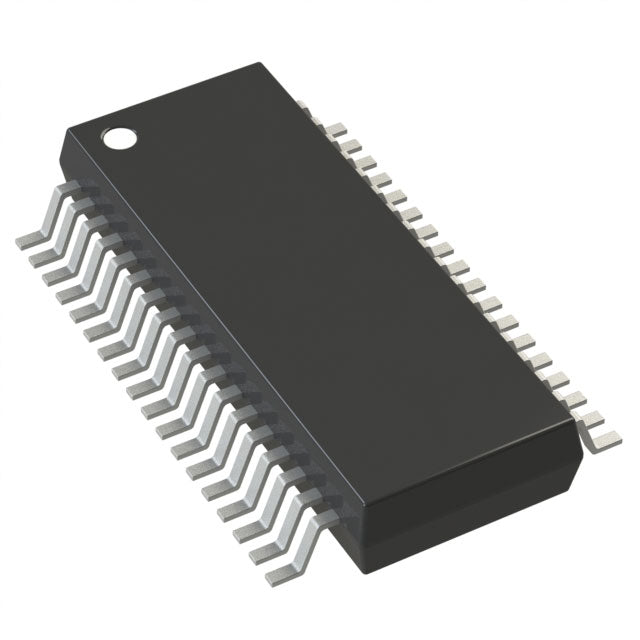

Analog Devices Inc. LTC1960CG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.60 | $17.60 |
| 15+ | $17.05 | $255.75 |
| 25+ | $16.68 | $417.00 |
| 50+ | $15.75 | $787.50 |
| 100+ | $13.90 | $1,390.00 |
| N+ | $2.78 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Smart Batteries |
| Number of Cells | 2 |
| Current - Charging | - |
| Programmable Features | - |
| Fault Protection | Over Current |
| Charge Current - Max | - |
| Battery Pack Voltage | - |
| Voltage - Supply (Max) | 28V |
| Interface | SPI |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 36-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 36-SSOP |
| ROHS |  |
The LTC1960CG#PBF is a sophisticated battery charger tailored for Smart Battery applications. It is designed to manage a 2-cell battery pack and communicates via an SPI interface for precise control and monitoring. The charger includes Over Current protection to safeguard the system. With an operating temperature range of 0°C to 70°C, it is intended for commercial and indoor use. Housed in a 36-SSOP package, it provides a compact and feature-rich solution for advanced portable devices.
- Smart Battery Management: Specifically designed for Smart Batteries, ensuring compatibility with intelligent battery packs.
- Digital Control: The SPI interface allows for advanced system integration and precise charging parameter adjustments.
- Enhanced Safety: Over Current protection prevents damage from fault conditions.
- Compact Design: The 36-SSOP package is suitable for space-limited portable applications.
Smart Battery Systems in Laptops
Designed for Smart Batteries, the SPI interface allows for precise communication and control in portable computers, ensuring optimal charging in a controlled environment.
Portable Medical Devices
For devices like portable infusion pumps, the SPI interface enables accurate monitoring and control of the 2-cell smart battery, enhancing reliability in clinical settings.
High-End Consumer Electronics
Professional cameras and portable instruments that use smart battery technology benefit from the precise control and overcurrent protection offered by this charger.
Industrial Handheld Terminals
In warehouse or retail environments, the SPI interface allows the host system to manage the charging profile of smart batteries for extended runtime and safety.
Backup Power Units
For small UPS systems using smart batteries, this charger provides the necessary communication and protection features for reliable operation in indoor installations.
- Q: What type of batteries is the LTC1960CG#PBF designed for?
- A: It is designed for Smart Batteries.
- Q: How many cells does it support?
- A: It supports 2 cells.
- Q: What fault protection is included?
- A: It includes Over Current protection.
- Q: What control interface does it use?
- A: It uses an SPI interface.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C (TA).
- Q: What package is it available in?
- A: It comes in a 36-SSOP (0.209", 5.30mm Width) package.
