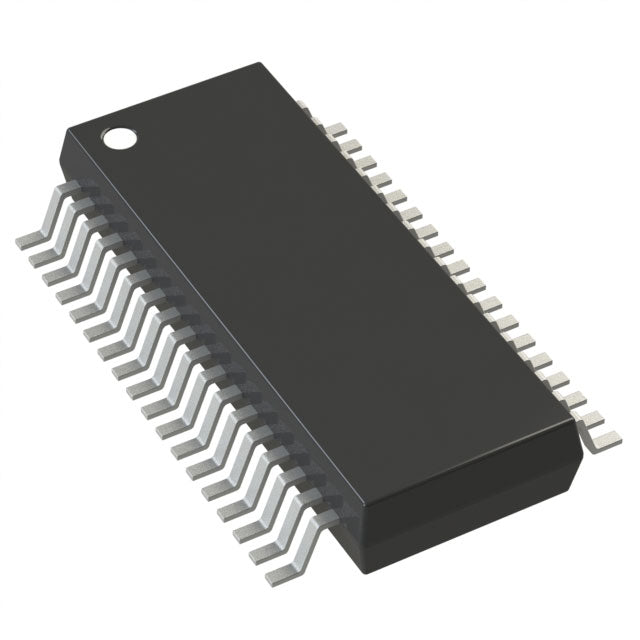

Analog Devices Inc. LTC1960CG#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.60 | $17.60 |
| 15+ | $17.05 | $255.75 |
| 25+ | $16.68 | $417.00 |
| 50+ | $15.75 | $787.50 |
| 100+ | $13.90 | $1,390.00 |
| N+ | $2.78 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Smart Batteries |
| Number of Cells | 2 |
| Current - Charging | - |
| Programmable Features | - |
| Fault Protection | Over Current |
| Charge Current - Max | - |
| Battery Pack Voltage | - |
| Voltage - Supply (Max) | 28V |
| Interface | SPI |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 36-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 36-SSOP |
| ROHS |  |
The LTC1960CG#TRPBF from Analog Devices is a battery charger IC specifically designed for smart batteries. It supports 2-cell configurations and features an SPI interface for advanced system integration. The device includes over-current protection to ensure safe operation. With an operating temperature range of 0°C to 70°C (TA), it is well-suited for commercial and indoor applications. It is available in a 36-SSOP package.
- Smart Battery Management: Specifically designed for smart batteries, enabling advanced monitoring and control.
- Digital Control: The SPI interface allows for precise configuration and status monitoring by the host controller.
- Compact Integration: The 36-SSOP package is suitable for space-constrained designs.
- Safe Operation: Over-current protection helps prevent damage to the battery and system.
Commercial Laptop Battery Chargers
Designed for smart batteries, this charger is ideal for commercial laptops and notebooks that require SPI communication for battery management in office environments.
Portable Medical Monitors
In controlled clinical settings, the LTC1960CG can manage 2-cell smart battery packs in portable patient monitors, ensuring reliable power.
Point-of-Sale (POS) Terminals
Retail POS systems operating indoors can benefit from this charger's reliable charging of smart batteries, ensuring uninterrupted transactions.
Test and Measurement Equipment
Benchtop instruments in laboratories can use this IC to charge their internal smart batteries, providing consistent performance in a controlled environment.
Consumer Electronics Docking Stations
Docking stations for smart-battery-powered devices can integrate this charger for efficient and protected charging in home or office settings.
- Q: What type of batteries does the LTC1960CG support?
- A: It is designed for Smart Batteries.
- Q: How many cells can it charge?
- A: It supports 2 cells.
- Q: What fault protection is included?
- A: It includes Over Current protection.
- Q: What control interface does it use?
- A: It uses an SPI interface for communication and control.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C (TA), suitable for commercial applications.
- Q: What package is it available in?
- A: It comes in a 36-SSOP package.
