Analog Devices Inc. LTC2190CUKG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $78.56 | $78.56 |
| 15+ | $76.07 | $1,141.05 |
| 25+ | $74.42 | $1,860.50 |
| 50+ | $70.29 | $3,514.50 |
| 100+ | $62.02 | $6,202.00 |
| N+ | $12.40 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 25M |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | LVDS - Serial |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Features | Simultaneous Sampling |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

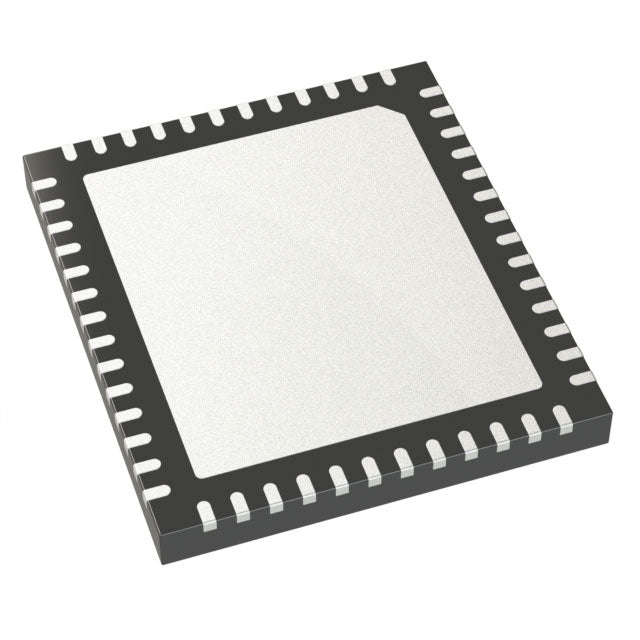

| Package / Case | 52-WFQFN Exposed Pad |
| Supplier Device Package | 52-QFN (7x8) |
| ROHS |  |
The LTC2190CUKG#PBF from Analog Devices is a 16-bit, dual-channel ADC with a sampling rate of 25 MSPS. It is designed for high-precision applications where low noise and low power are critical. The LVDS serial interface ensures clean data transfer, while the external or internal reference options offer design flexibility. Its compact 52-WFQFN package is perfect for portable and space-constrained equipment.
- High Precision: 16-bit resolution delivers exceptional accuracy for demanding measurement applications.
- Low Noise: LVDS serial interface minimizes digital interference, preserving signal integrity.
- Low Power: Optimized for battery-powered devices, extending operational life.
- Compact Package: 52-WFQFN package reduces PCB footprint, ideal for miniaturized designs.
Portable Medical Devices
The 16-bit resolution and low power consumption make it ideal for battery-powered medical devices like digital stethoscopes and portable ultrasound, ensuring accurate signal capture.
High-Precision Data Acquisition
In laboratory data acquisition systems, the 25 MSPS sampling rate and high resolution enable precise measurement of slow-varying signals with excellent noise performance.
Industrial Sensor Interfaces
With a temperature range of 0°C to 70°C, it is suitable for factory automation, converting signals from temperature and pressure sensors with high accuracy.
Audio and Vibration Analysis
The dual-channel design supports stereo audio capture or simultaneous vibration monitoring, making it useful for acoustic analysis and predictive maintenance.
Communication Receivers
The LVDS serial interface reduces digital noise, making it suitable for software-defined radios and other communication receivers requiring high signal integrity.
- Q: What is the resolution of the LTC2190CUKG#PBF?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 25 MSPS.
- Q: How many channels does it have?
- A: This ADC has 2 input channels.
- Q: What interface is supported?
- A: It uses an LVDS serial interface for data output.
- Q: What is the architecture?
- A: The architecture is S/H-ADC (sample-and-hold).
- Q: What is the package type?
- A: It is available in a 52-WFQFN Exposed Pad package.
