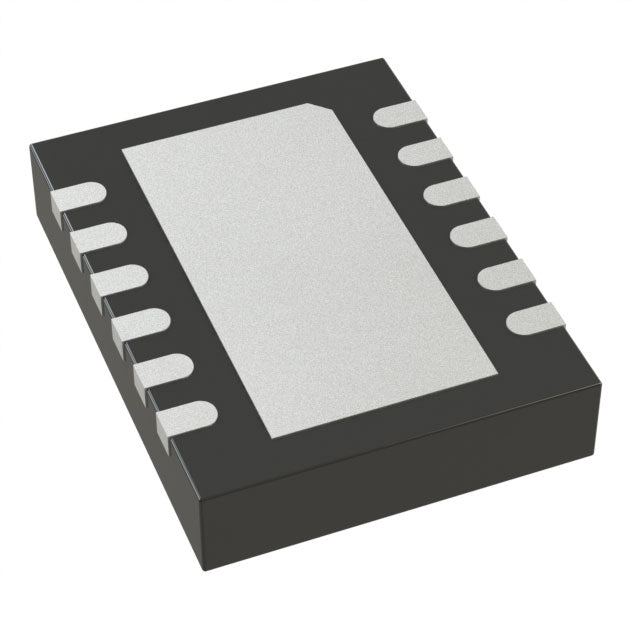

Analog Devices Inc. LTC2301IDE#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.35 | $8.35 |
| 15+ | $8.09 | $121.35 |
| 25+ | $7.91 | $197.75 |
| 50+ | $7.47 | $373.50 |
| 100+ | $6.59 | $659.00 |
| N+ | $1.32 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 14k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | I2C |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | Selectable Address |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (4x3) |
| ROHS |  |
The LTC2301IDE#PBF from Analog Devices is a 12-bit analog-to-digital converter (ADC) designed for precise single-channel data acquisition. It features a sampling rate of 14k SPS and a MUX-S/H-ADC architecture, ensuring reliable signal conversion. With an I2C interface, it integrates easily into digital systems. The device supports both external and internal references, offering flexibility in voltage scaling. Housed in a compact 12-WFDFN package, it operates over a wide temperature range of -40°C to 85°C, making it suitable for industrial, automotive, and portable instrumentation applications.
- High Accuracy: 12-bit resolution provides 4096 levels, ensuring fine granularity for precise measurement in sensor applications.
- Flexible Reference: Supports both external and internal references, allowing designers to optimize for accuracy or simplicity.
- Simple Integration: I2C interface reduces wiring complexity and is compatible with most microcontrollers.
- Wide Temperature Range: -40°C to 85°C operation ensures reliability in demanding industrial environments.
- Compact Footprint: 12-WFDFN exposed pad package aids in thermal dissipation and saves PCB space.
Industrial Process Control
In industrial automation, the LTC2301IDE#PBF's 12-bit resolution and 14k SPS sampling rate enable accurate digitization of 4-20 mA current loop signals from transducers, ensuring precise monitoring of pressure, flow, and temperature in harsh environments (-40°C to 85°C).
Portable Instrumentation
With its I2C interface and compact 12-WFDFN package, this ADC is perfect for battery-powered handheld multimeters and data loggers, where low pin count and minimal board space are critical.
Medical Sensor Front-Ends
The single-channel configuration and internal/external reference options make it suitable for digitizing outputs from medical sensors like pulse oximeters or glucose monitors, where stable and accurate 12-bit conversion is required.
Automotive Battery Monitoring
Operating across the full automotive temperature range, the LTC2301IDE#PBF can monitor individual battery cell voltages in electric vehicles, providing reliable data for battery management systems (BMS).
Precision Reference Systems
When used with an external precision reference, this ADC achieves high accuracy for calibration equipment and laboratory test benches, leveraging its MUX-S/H-ADC architecture to minimize sampling errors.
Smart Building Automation
In HVAC systems, the ADC digitizes analog outputs from temperature and humidity sensors, enabling energy-efficient climate control through accurate environmental data acquisition.
- Q: What type of ADC is the LTC2301IDE#PBF?
- A: It is a 12-bit successive approximation register (SAR) ADC with a MUX-S/H-ADC architecture, featuring a multiplexer and sample-and-hold circuit.
- Q: What is the resolution of this ADC?
- A: The LTC2301IDE#PBF provides 12-bit resolution, offering 4096 discrete output levels for precise analog-to-digital conversion.
- Q: What is the sampling rate of the LTC2301IDE#PBF?
- A: It supports a sampling rate of 14k SPS (samples per second), suitable for low-to-moderate speed data acquisition.
- Q: How many input channels does this device have?
- A: It features a single input channel (1 channel), making it ideal for dedicated single-signal monitoring applications.
- Q: What interface does the LTC2301IDE#PBF use?
- A: It uses the I2C serial interface, which simplifies connectivity with microcontrollers and reduces pin count.
- Q: What is the operating temperature range and package?
- A: It operates from -40°C to 85°C and comes in a 12-WFDFN exposed pad package for enhanced thermal performance.
