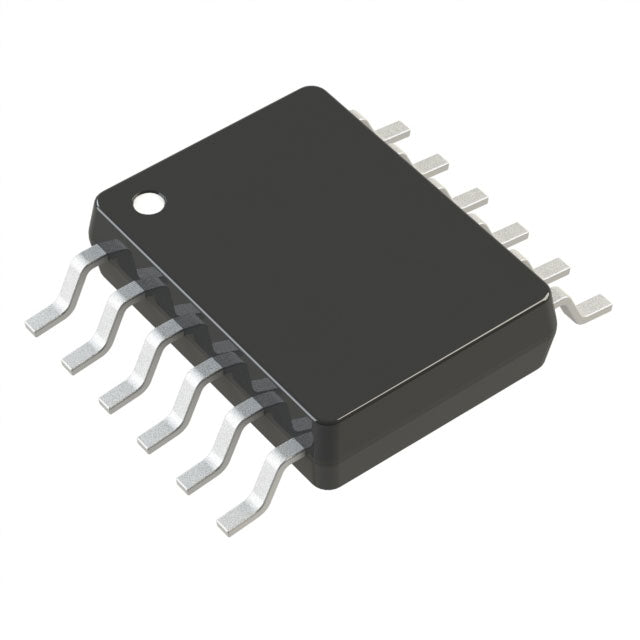

Analog Devices Inc. LTC2301IMS#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.35 | $8.35 |
| 15+ | $8.09 | $121.35 |
| 25+ | $7.91 | $197.75 |
| 50+ | $7.47 | $373.50 |
| 100+ | $6.59 | $659.00 |
| N+ | $1.32 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 14k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | I2C |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | Selectable Address |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 12-MSOP |
| ROHS |  |
The LTC2301IMS#PBF is a 12-bit analog-to-digital converter from Analog Devices, offering a sampling rate of 14k SPS. It features a single input channel and utilizes a MUX-S/H-ADC architecture. The device communicates via an I2C interface, simplifying system design by using only two wires for data transfer. With both external and internal reference options, it provides flexibility in various applications. Its operating temperature range of -40°C to 85°C and compact 12-TSSOP package make it a versatile choice for portable instrumentation, industrial control, and medical devices.
- I2C Interface: Simplifies connectivity and reduces pin usage, ideal for space-constrained designs.
- Flexible Reference: Supports both external and internal references, allowing designers to optimize for accuracy or cost.
- Compact Size: The 12-TSSOP package is small, making it perfect for portable and handheld devices.
- Reliable Operation: Guaranteed operation over -40°C to 85°C ensures performance in varied environments.
Portable Instrumentation
The LTC2301IMS#PBF's 12-bit resolution and 14k SPS sampling rate are well-suited for portable multimeters and data loggers, providing accurate readings while maintaining low power consumption.
Battery Monitoring Systems
In battery management, this ADC can monitor voltage and current levels with sufficient precision to estimate state-of-charge, helping to extend battery life in consumer electronics.
Industrial Sensor Interfaces
With its I2C interface and moderate speed, the LTC2301IMS#PBF can digitize signals from industrial sensors like temperature transmitters or pressure sensors for PLCs and control systems.
Medical Monitoring Devices
The device's accuracy and compact TSSOP package make it suitable for portable medical devices such as glucose meters or pulse oximeters, where size and reliability are crucial.
Automotive Electronics
Operating from -40°C to 85°C, this ADC can be used in automotive applications like sensor signal conditioning for engine control or climate systems.
Data Acquisition Add-ons
For microcontroller-based DAQ add-on boards, the LTC2301IMS#PBF provides a simple I2C-based solution to add analog input capabilities to digital systems.
- Q: What is the LTC2301IMS#PBF?
- A: It is a 12-bit analog-to-digital converter (ADC) from Analog Devices with a MUX-S/H-ADC architecture.
- Q: What is the resolution of the LTC2301IMS#PBF?
- A: It provides 12-bit resolution, offering a good balance between precision and speed.
- Q: What is the sampling rate of the LTC2301IMS#PBF?
- A: The sampling rate is 14k SPS (14,000 samples per second), suitable for moderate-speed applications.
- Q: How many channels does the LTC2301IMS#PBF have?
- A: It has 1 input channel.
- Q: What interface does the LTC2301IMS#PBF use?
- A: It uses an I2C interface, which is ideal for systems with limited pin counts.
- Q: What is the package type for the LTC2301IMS#PBF?
- A: It comes in a 12-TSSOP (0.118", 3.00mm Width) package.
