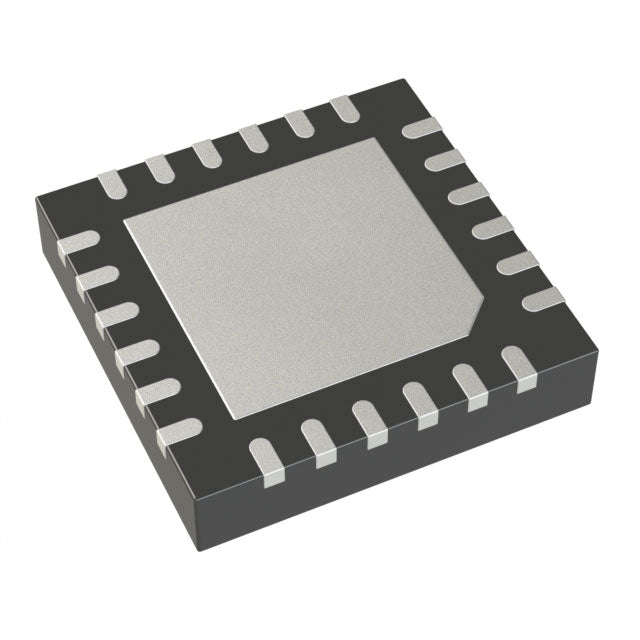

Analog Devices Inc. LTC2308CUF#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.57 | $9.57 |
| 15+ | $9.26 | $138.90 |
| 25+ | $9.06 | $226.50 |
| 50+ | $8.56 | $428.00 |
| 100+ | $7.55 | $755.00 |
| N+ | $1.51 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) |
| ROHS |  |
The LTC2308CUF#PBF is a high-performance 12-bit Analog-to-Digital Converter (ADC) from Analog Devices Inc., designed for multi-channel data acquisition applications. It features 8 multiplexed input channels and a maximum sampling rate of 500k SPS, enabling fast and accurate conversion of multiple analog signals. The device utilizes a MUX-S/H-ADC architecture and communicates via a standard SPI interface, simplifying integration with digital systems. With support for both external and internal voltage references, this ADC offers flexibility in various precision measurement applications, including industrial automation, medical instrumentation, and portable test equipment. The compact 24-WFQFN exposed pad package ensures efficient thermal management and space-saving PCB layouts.
- High-Speed Multi-Channel Sampling: 500k SPS sampling rate with 8 channels enables efficient digitization of multiple signals in real-time data acquisition systems.
- Flexible Reference Options: Supports both external and internal voltage references, allowing designers to optimize accuracy and cost for their specific application.
- Compact Package Design: The 24-WFQFN exposed pad package minimizes PCB footprint while providing excellent thermal dissipation for reliable operation.
- Standard SPI Interface: Simplifies connection to microcontrollers and DSPs, reducing design complexity and time-to-market.
- Proven Analog Devices Quality: Manufactured by Analog Devices Inc., ensuring high reliability and consistent performance across temperature ranges.
Multi-Channel Data Acquisition Systems
The 8-channel multiplexer combined with a 500k SPS sampling rate allows the LTC2308CUF#PBF to efficiently digitize multiple analog signals in industrial data acquisition systems, reducing component count and board space.
Industrial Process Control
With 12-bit resolution and SPI interface, this ADC is ideal for monitoring and controlling industrial processes, providing accurate digital representation of sensor outputs for precise feedback loops.
Portable Instrumentation
The 24-WFQFN exposed pad package enables compact PCB designs for portable test and measurement equipment, where high-speed sampling and low power consumption are critical.
Automated Test Equipment (ATE)
The high sampling rate of 500k SPS makes the LTC2308CUF#PBF suitable for ATE applications requiring fast and accurate digitization of multiple test points in a single device.
Medical Monitoring Devices
The 12-bit resolution and 8-channel capability support multi-parameter patient monitoring systems, enabling simultaneous acquisition of vital signs with reliable SPI data transfer.
Communication Systems
In base station and communication infrastructure, the LTC2308CUF#PBF can digitize multiple control and monitoring signals, ensuring stable operation through its external or internal reference options.
- Q: What type of ADC is the LTC2308CUF#PBF?
- A: The LTC2308CUF#PBF is a 12-bit, 8-channel Analog-to-Digital Converter (ADC) featuring a MUX-S/H-ADC architecture.
- Q: What is the resolution of the LTC2308CUF#PBF?
- A: It provides 12-bit resolution, offering 4096 discrete output levels for precise signal digitization.
- Q: What is the sampling rate of the LTC2308CUF#PBF?
- A: The maximum sampling rate is 500k SPS (samples per second), suitable for high-speed data acquisition.
- Q: How many input channels does the LTC2308CUF#PBF have?
- A: It features 8 multiplexed input channels, allowing multiple analog signals to be digitized sequentially.
- Q: What digital interface does the LTC2308CUF#PBF use?
- A: It uses a standard SPI (Serial Peripheral Interface) for communication with microcontrollers and DSPs.
- Q: What is the operating temperature range?
- A: The LTC2308CUF#PBF operates over a commercial temperature range of 0°C to 70°C.
