Analog Devices Inc. LTC2311IMSE-14#WPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $29.71 | $29.71 |
| 15+ | $28.77 | $431.55 |
| 25+ | $28.14 | $703.50 |
| 50+ | $26.58 | $1,329.00 |
| 100+ | $23.45 | $2,345.00 |
| N+ | $4.69 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 5M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Serial, SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | AEC-Q100 |

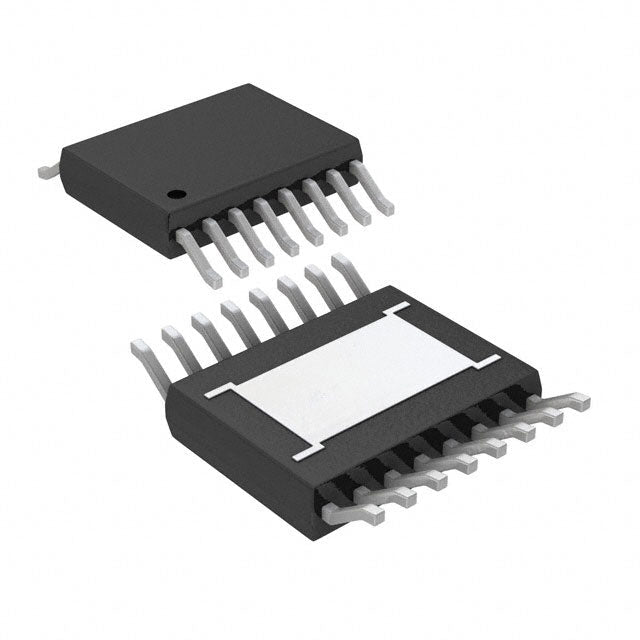

| Package / Case | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 16-MSOP-EP |
| ROHS |  |
The LTC2311IMSE-14#WPBF is a 14-bit analog-to-digital converter from Analog Devices, designed for high-speed applications. It features a single input channel and a maximum sampling rate of 5M SPS. The S/H-ADC architecture ensures accurate sampling of fast signals. It supports both LVDS serial and SPI interfaces, offering design flexibility. With an external or internal reference, it operates from -40°C to 85°C in a 16-TFSOP exposed pad package. This ADC is ideal for communications, medical imaging, and high-speed industrial testing.
- Ultra-Fast Sampling (5M SPS): Enables digitization of high-frequency signals, making it suitable for radar, lidar, and high-speed instrumentation.
- Flexible Interface Options: Supports both LVDS and SPI, allowing designers to choose the best interface for their system architecture.
- High Resolution (14-bit): Provides 16,384 levels, ensuring good signal fidelity for demanding applications.
- Wide Temperature Range: Rated for -40°C to 85°C, suitable for automotive and industrial environments.
- Exposed Pad for Thermal Management: The exposed pad package improves heat dissipation, ensuring stable operation at high sampling rates.
High-Speed Data Acquisition
The 5M SPS sampling rate of the LTC2311IMSE-14#WPBF makes it ideal for high-speed data acquisition systems, such as those used in radar, lidar, and high-frequency signal analysis.
Communications Infrastructure
In base stations and software-defined radios, this ADC can digitize intermediate frequency (IF) signals with high speed and 14-bit resolution, enabling advanced digital signal processing.
Medical Imaging Systems
For ultrasound and optical coherence tomography (OCT), the LTC2311IMSE-14#WPBF provides the high sampling rate needed to capture fast-returning echoes or interference patterns with good resolution.
Automotive ADAS
In advanced driver-assistance systems, this ADC can process signals from cameras, radar, and lidar sensors. The LVDS interface supports high-speed data transfer to processing units, while the wide temperature range ensures reliability.
Industrial High-Speed Testing
The LTC2311IMSE-14#WPBF is suitable for automated test equipment (ATE) that requires fast and accurate digitization of waveforms, such as in semiconductor testing or vibration analysis.
Portable High-Performance Instruments
With its exposed pad package and low power consumption, this ADC can be used in portable spectrum analyzers and high-speed oscilloscopes, offering laboratory-grade performance in a compact form factor.
- Q: What is the LTC2311IMSE-14#WPBF?
- A: The LTC2311IMSE-14#WPBF is a 14-bit analog-to-digital converter (ADC) with a sample-and-hold (S/H-ADC) architecture, designed for high-speed data conversion.
- Q: What is the resolution of the LTC2311IMSE-14#WPBF?
- A: It provides 14-bit resolution, offering 16,384 discrete levels for accurate digitization of analog signals.
- Q: What is the sampling rate of the LTC2311IMSE-14#WPBF?
- A: The LTC2311IMSE-14#WPBF supports a maximum sampling rate of 5M SPS (5 million samples per second), making it suitable for high-speed applications.
- Q: How many channels does the LTC2311IMSE-14#WPBF have?
- A: This ADC has a single input channel (1 channel), optimized for dedicated high-speed signal acquisition.
- Q: What interfaces does the LTC2311IMSE-14#WPBF support?
- A: It supports both LVDS (Low-Voltage Differential Signaling) serial and SPI interfaces, providing flexibility for different digital systems.
- Q: What is the package and temperature range?
- A: The LTC2311IMSE-14#WPBF is available in a 16-TFSOP (0.118", 3.00mm Width) Exposed Pad package and operates from -40°C to 85°C.
