Analog Devices Inc. LTC2315ITS8-12#TRMPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $15.56 | $15.56 |
| 15+ | $15.07 | $226.05 |
| 25+ | $14.74 | $368.50 |
| 50+ | $13.92 | $696.00 |
| 100+ | $12.29 | $1,229.00 |
| N+ | $2.46 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 5M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V, 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| ROHS |  |

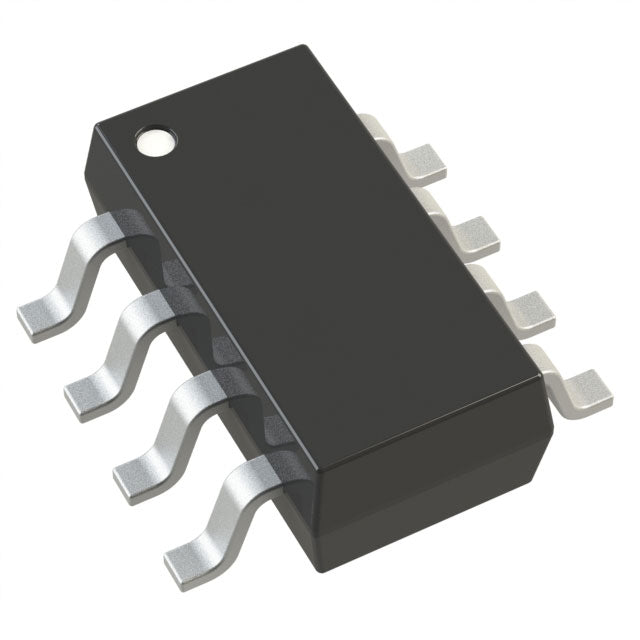

The LTC2315ITS8-12#TRMPBF from Analog Devices is a high-speed, 12-bit analog-to-digital converter designed for applications requiring fast and accurate signal conversion. It features a successive approximation architecture with a sample-and-hold circuit, achieving a maximum sampling rate of 5M SPS. The device includes an internal reference, simplifying the design and reducing external component count. Communication is via a standard SPI interface, ensuring easy integration with microcontrollers and DSPs. Housed in a compact TSOT-23-8 package, it is ideal for space-constrained, high-performance applications. With an operating temperature range of -40°C to 85°C, it is suitable for a wide variety of industrial and consumer applications.
- Ultra-High Speed (5M SPS): Enables digitization of very fast signals, making it ideal for high-frequency applications like radar and communication.
- Internal Reference: Reduces external component count and simplifies PCB design, saving board space and cost.
- 12-Bit Resolution: Provides a good balance between speed and accuracy for many high-speed applications.
- Small TSOT-23 Package: Allows for compact designs, perfect for portable and space-limited equipment.
- SPI Interface: Offers a simple and fast digital interface, compatible with most microcontrollers.
High-Speed Communication Systems
The LTC2315ITS8-12#TRMPBF's 5M SPS sampling rate makes it ideal for digitizing high-frequency signals in communication systems, such as base stations and software-defined radios.
Medical Imaging and Ultrasound
In medical ultrasound equipment, this ADC's high speed and 12-bit resolution enable precise capture of echo signals for high-quality imaging.
Industrial High-Speed Data Acquisition
For applications like vibration analysis and high-speed motor control, the 5M SPS rate allows for accurate real-time monitoring and control.
Portable Test and Measurement
Its small TSOT-23 package and low power consumption make it suitable for portable oscilloscopes and logic analyzers.
Automotive Radar and LiDAR
The high sampling rate is critical for digitizing return signals in automotive radar and LiDAR systems, enabling accurate object detection.
High-Speed Instrumentation
For benchtop instruments requiring fast waveform capture, such as digitizers and spectrum analyzers, this ADC provides the necessary speed and performance.
- Q: What type of ADC is the LTC2315ITS8-12#TRMPBF?
- A: It is a 12-bit, successive approximation (SAR) analog-to-digital converter with a sample-and-hold circuit.
- Q: What is the resolution of the LTC2315ITS8-12#TRMPBF?
- A: The resolution is 12 bits.
- Q: What is the sampling rate of the LTC2315ITS8-12#TRMPBF?
- A: The maximum sampling rate is 5M SPS (5 million samples per second).
- Q: How many input channels does the LTC2315ITS8-12#TRMPBF have?
- A: It has a single input channel.
- Q: What digital interface does the LTC2315ITS8-12#TRMPBF use?
- A: It uses an SPI interface.
- Q: What is the package type for the LTC2315ITS8-12#TRMPBF?
- A: It is available in a thin SOT-23-8 package (TSOT-23-8).
