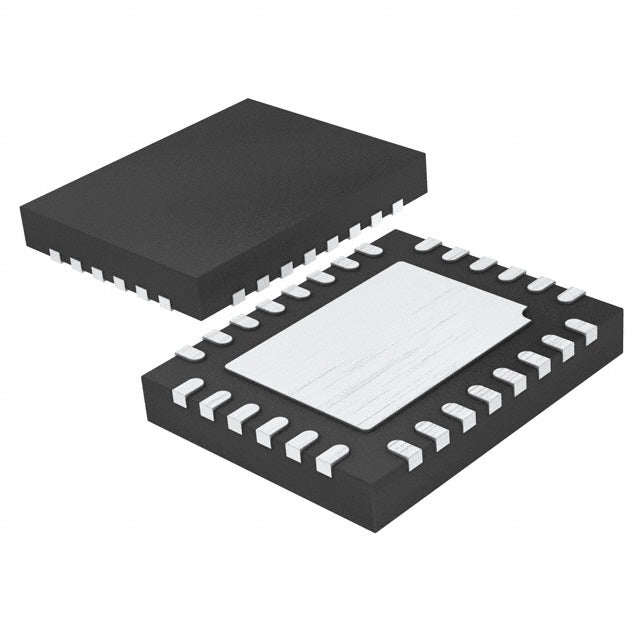

Analog Devices Inc. LTC2321CUFD-12#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.58 | $13.58 |
| 15+ | $13.15 | $197.25 |
| 25+ | $12.86 | $321.50 |
| 50+ | $12.15 | $607.50 |
| 100+ | $10.72 | $1,072.00 |
| N+ | $2.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 2M |
| Number of Inputs | 2 |
| Input Type | Differential, Pseudo-Differential |
| Data Interface | LVDS - Serial, Serial |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Features | Simultaneous Sampling |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
| ROHS |  |
The LTC2321CUFD-12#PBF is a 12-bit, 2M SPS analog-to-digital converter from Analog Devices, designed for high-speed and high-precision applications. Featuring 2 input channels and a sample-and-hold architecture, it ensures accurate conversion of fast analog signals. The device supports both LVDS serial and standard serial interfaces, offering flexible high-speed data transfer options. It operates with external or internal references, providing design flexibility. Housed in a 28-WFQFN exposed pad package, the LTC2321CUFD-12#PBF operates over a temperature range of 0°C to 70°C, making it suitable for communication, industrial, and medical applications.
- High-Speed LVDS Interface: Supports LVDS serial output for high-speed data transfer, reducing signal integrity issues in noisy environments.
- Dual-Channel Input: Two input channels allow for simultaneous sampling, ideal for applications requiring phase-matched data acquisition.
- Flexible Reference Options: Supports both external and internal references, providing design flexibility for different accuracy requirements.
- Compact Exposed Pad Package: The 28-WFQFN package with exposed pad enhances thermal performance, ensuring stable operation.
High-Speed Communication Systems
The LVDS serial interface and 2M SPS sampling rate make the LTC2321CUFD-12#PBF ideal for high-speed communication systems, such as base stations and radar receivers, where fast and accurate data conversion is critical.
Industrial Control Systems
In industrial automation, this ADC digitizes control signals from sensors and actuators with high speed, enabling precise and responsive process control.
Medical Imaging Equipment
The dual-channel capability and high sampling rate support applications like ultrasound and optical coherence tomography (OCT), where multiple signals need to be captured simultaneously.
Test and Measurement Instruments
For oscilloscopes and spectrum analyzers, the LTC2321CUFD-12#PBF provides the necessary speed and resolution to accurately capture and analyze high-frequency signals.
Automotive Radar Systems
With a 0°C to 70°C temperature range, this ADC is suitable for automotive radar and advanced driver-assistance systems (ADAS), where high-speed data conversion is essential for object detection.
- Q: What is the LTC2321CUFD-12#PBF?
- A: The LTC2321CUFD-12#PBF is a 12-bit analog-to-digital converter with a sample-and-hold architecture (S/H-ADC) and dual-channel input.
- Q: What is the resolution of this ADC?
- A: It provides 12-bit resolution, offering a good balance of speed and precision for many applications.
- Q: What is the sampling rate?
- A: The LTC2321CUFD-12#PBF supports a high sampling rate of 2M SPS, suitable for fast signal conversion.
- Q: How many channels does it have?
- A: It features 2 input channels, allowing for simultaneous or multiplexed sampling.
- Q: What interfaces are available?
- A: It supports both LVDS serial and standard serial interfaces, providing high-speed data transfer options.
- Q: What is the package type?
- A: The device is available in a 28-WFQFN exposed pad package, which aids in thermal dissipation.
