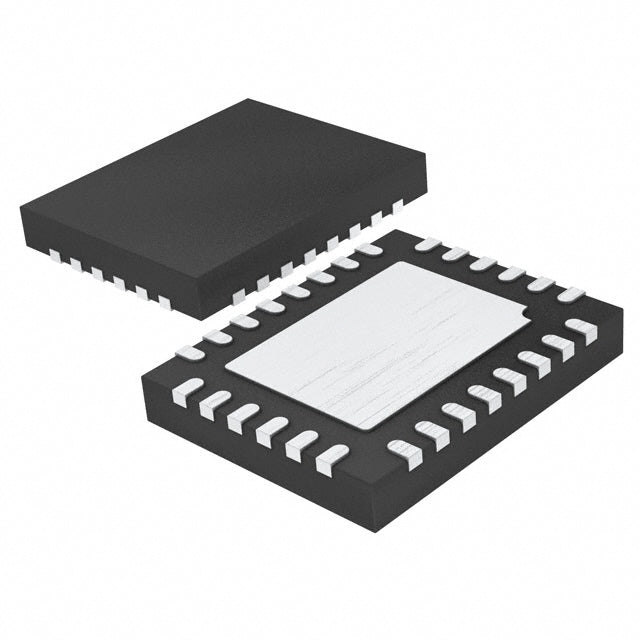

Analog Devices Inc. LTC2323CUFD-16#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $29.98 | $29.98 |
| 15+ | $29.04 | $435.60 |
| 25+ | $28.40 | $710.00 |
| 50+ | $26.83 | $1,341.50 |
| 100+ | $23.67 | $2,367.00 |
| N+ | $4.73 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 5M |
| Number of Inputs | 2 |
| Input Type | Differential, Pseudo-Differential |
| Data Interface | LVDS - Serial, Serial |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Features | Simultaneous Sampling |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
| ROHS |  |
The LTC2323CUFD-16#PBF from Analog Devices is a high-performance 16-bit analog-to-digital converter featuring a 5 MSPS sampling rate. With two input channels and a flexible LVDS serial interface, this S/H-ADC delivers exceptional speed and precision. It supports both external and internal voltage references, making it versatile for various precision applications including industrial automation, medical imaging, and high-speed data acquisition systems.
- High-Speed Precision: 16-bit resolution at 5 MSPS enables accurate capture of fast-changing signals.
- Flexible Interfacing: LVDS serial interface ensures high-speed data transfer with reduced noise.
- Dual-Channel Input: Two channels allow simultaneous sampling of multiple signals.
- Reference Flexibility: Internal or external reference options provide design versatility.
High-Speed Data Acquisition
The 5 MSPS sampling rate and 16-bit resolution make it ideal for high-speed data acquisition systems requiring precise waveform capture.
Industrial Process Control
With dual channels and internal/external reference options, it can monitor multiple industrial sensors with high accuracy.
Medical Imaging Equipment
The high-speed serial LVDS interface supports fast data transfer needed in ultrasound and other medical imaging systems.
Communications Infrastructure
Its high sampling rate enables digitization of IF signals in base station receivers.
Test and Measurement Instruments
16-bit resolution at 5 MSPS provides the accuracy and speed required for benchtop instruments like oscilloscopes and spectrum analyzers.
Automotive Radar Systems
The wide temperature range and high-speed performance suit automotive radar signal processing.
- Q: What is the resolution of the LTC2323CUFD-16#PBF?
- A: The LTC2323CUFD-16#PBF is a 16-bit ADC.
- Q: What is the sampling rate?
- A: It offers a high sampling rate of 5 MSPS.
- Q: How many input channels does it have?
- A: This ADC features 2 input channels.
- Q: What interface does it use?
- A: It supports LVDS serial and standard serial interfaces.
- Q: What is the architecture of this ADC?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What package is available?
- A: It comes in a 28-WFQFN Exposed Pad package.
