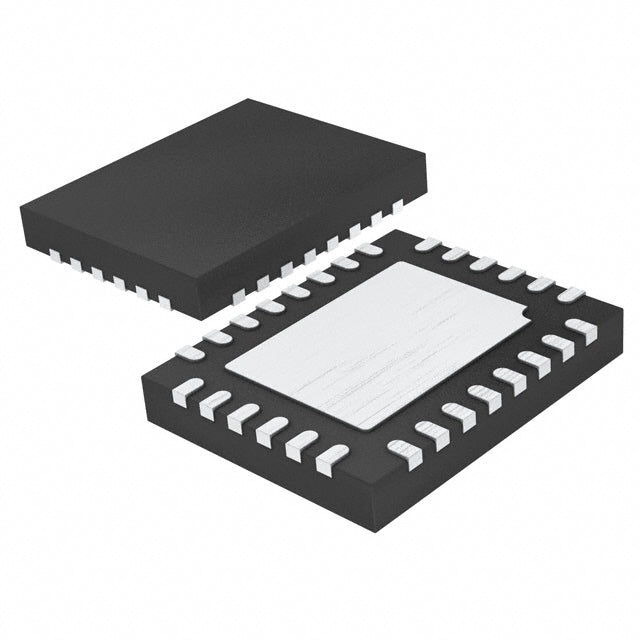

Analog Devices Inc. LTC2323HUFD-16#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $34.21 | $34.21 |
| 15+ | $33.13 | $496.95 |
| 25+ | $32.41 | $810.25 |
| 50+ | $30.61 | $1,530.50 |
| 100+ | $27.01 | $2,701.00 |
| N+ | $5.40 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 5M |
| Number of Inputs | 2 |
| Input Type | Differential, Pseudo-Differential |
| Data Interface | LVDS - Serial, Serial |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
| ROHS |  |
The LTC2323HUFD-16#PBF is a high-speed 16-bit analog-to-digital converter with 2 input channels and a sampling rate of 5M SPS. It features a S/H-ADC architecture and supports both external and internal references. The interface options include LVDS - Serial and Serial, providing flexibility for high-speed data transfer. This ADC is designed for demanding applications such as medical imaging, automotive radar, and high-performance test equipment, operating over a wide -40°C to 125°C temperature range in a 28-WFQFN package.
- Ultra-Fast Sampling: 5M SPS sampling rate enables digitization of high-frequency signals, making it suitable for advanced applications.
- Dual-Channel Simultaneous Sampling: Two channels allow for synchronized acquisition of two signals, critical for phase-sensitive measurements.
- Wide Temperature Range: Operates from -40°C to 125°C, suitable for harsh automotive and industrial environments.
- Flexible High-Speed Interface: LVDS and Serial options provide design flexibility for high-speed data transfer to FPGAs or DSPs.
High-Speed Data Acquisition
The LTC2323HUFD-16#PBF is designed for high-speed data acquisition systems requiring 16-bit resolution at 5M SPS. Its dual channels allow simultaneous sampling of two signals, ideal for I/Q demodulation in communications.
Medical Imaging Systems
In ultrasound and MRI equipment, the high sampling rate and resolution enable precise capture of fast-changing signals, improving image quality and diagnostic accuracy.
Automotive Radar and LIDAR
With a wide -40°C to 125°C temperature range, this ADC is suitable for automotive safety systems. The 5M SPS rate supports the high-speed digitization needed for radar and LIDAR signal processing.
Industrial Vibration Analysis
For predictive maintenance, this ADC can digitize high-frequency vibration signals from machinery, enabling early detection of mechanical faults in industrial automation.
High-Performance Test Equipment
The combination of 16-bit resolution and 5M SPS makes this ADC ideal for high-end test instruments like oscilloscopes and spectrum analyzers, where both speed and accuracy are critical.
- Q: What type of ADC is the LTC2323HUFD-16#PBF?
- A: It is a 16-bit, dual-channel analog-to-digital converter with a S/H-ADC architecture.
- Q: What is the resolution of the LTC2323HUFD-16#PBF?
- A: The resolution is 16 bits.
- Q: What is the sampling rate of the LTC2323HUFD-16#PBF?
- A: The sampling rate is 5M SPS (5 million samples per second).
- Q: How many input channels does the LTC2323HUFD-16#PBF have?
- A: It has 2 input channels.
- Q: What digital interface does the LTC2323HUFD-16#PBF use?
- A: It uses an LVDS - Serial or Serial interface.
- Q: What is the package type for the LTC2323HUFD-16#PBF?
- A: It comes in a 28-WFQFN Exposed Pad package.
