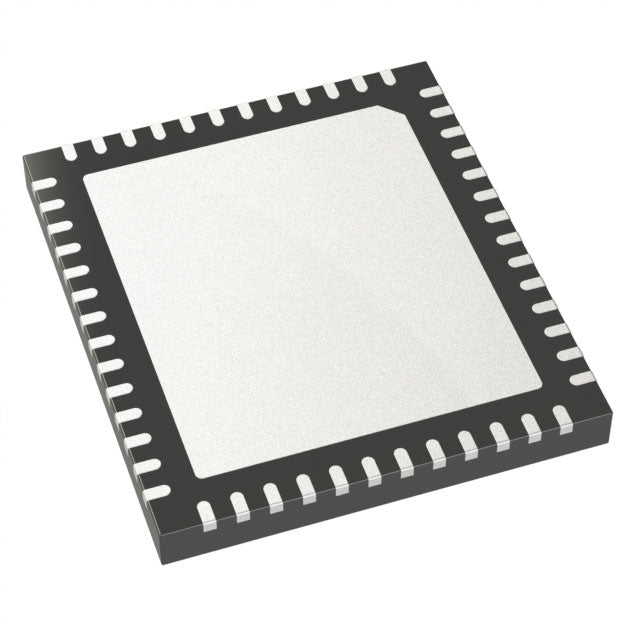

Analog Devices Inc. LTC2324IUKG-16#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $28.62 | $28.62 |
| 15+ | $27.72 | $415.80 |
| 25+ | $27.12 | $678.00 |
| 50+ | $25.61 | $1,280.50 |
| 100+ | $22.60 | $2,260.00 |
| N+ | $4.52 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 2M |
| Number of Inputs | 4 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel, SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 52-WFQFN Exposed Pad |
| Supplier Device Package | 52-QFN (7x8) |
| ROHS |  |
The LTC2324IUKG-16#PBF from Analog Devices is a 16-bit, 2M SPS analog-to-digital converter with 4 input channels. It offers flexible digital interfaces including LVDS - Parallel and SPI. Housed in a 52-WFQFN package, it operates over -40°C to 85°C, ideal for multi-channel industrial and medical applications.
- Multi-Channel: 4 simultaneous sampling channels increase system throughput.
- Flexible Interface: Supports both LVDS and SPI for design versatility.
- High Resolution: 16-bit resolution provides good dynamic range.
- Compact Design: 52-WFQFN package minimizes PCB footprint.
Multi-Channel Data Acquisition
With 4 channels and 16-bit resolution, this ADC is perfect for multi-channel data acquisition systems in industrial automation.
Medical Ultrasound
The high sampling rate and multiple channels support ultrasound beamforming applications requiring simultaneous signal capture.
Power System Monitoring
It can digitize multiple voltage and current signals for power quality analysis and protection relays.
Automotive Battery Management
The 4-channel configuration allows monitoring of multiple battery cells in electric vehicles.
Portable Instrumentation
Its low power consumption and compact WFQFN package make it suitable for battery-powered test equipment.
- Q: What is the resolution of the LTC2324IUKG-16#PBF?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 2M SPS.
- Q: How many channels does it have?
- A: It features 4 input channels.
- Q: What interfaces are supported?
- A: It supports LVDS - Parallel and SPI interfaces.
- Q: What is the architecture?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What is the package type?
- A: It comes in a 52-WFQFN exposed pad package.
