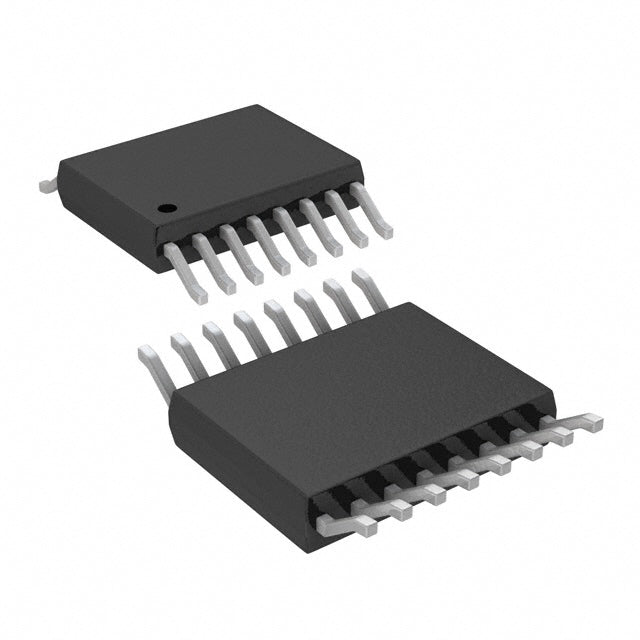

Analog Devices Inc. LTC2327HMS-18#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $57.32 | $57.32 |
| 15+ | $55.51 | $832.65 |
| 25+ | $54.31 | $1,357.75 |
| 50+ | $51.29 | $2,564.50 |
| 100+ | $45.26 | $4,526.00 |
| N+ | $9.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Pseudo-Differential |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-TFSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 16-MSOP |
| ROHS |  |
The LTC2327HMS-18#PBF is an 18-bit, 500 kSPS analog-to-digital converter from Linear Technology, designed for high-accuracy applications in extreme conditions. It features a single input channel and a straightforward SPI interface for easy integration. The S/H-ADC architecture ensures reliable sampling, while the support for external and internal references provides design flexibility. This ADC is housed in a compact 16-TFSOP package and operates over an extended temperature range of -40°C to 125°C, making it an excellent choice for automotive, industrial, and aerospace applications where reliability is critical.
- High Resolution: 18-bit accuracy ensures precise measurement of analog signals.
- Extended Temperature Range: Operates from -40°C to 125°C, ideal for harsh environments.
- Moderate Speed: 500 kSPS sampling rate balances speed and power consumption.
- Flexible Reference: Supports external and internal references for design optimization.
- Compact Size: 16-TFSOP package saves valuable PCB space.
Automotive Battery Monitoring
The wide temperature range (-40°C to 125°C) and 18-bit resolution make it ideal for monitoring battery voltage and current in electric vehicles, ensuring accurate state-of-charge estimation.
Industrial Process Control
With 500 kSPS sampling and high resolution, it is perfect for precise control of industrial processes, such as temperature and pressure monitoring in harsh environments.
Aerospace and Defense
Its ability to operate at extreme temperatures makes it suitable for aerospace applications, including flight control systems and engine monitoring.
High-Precision Instrumentation
The 18-bit resolution ensures accurate measurements in laboratory instruments, such as precision multimeters and data acquisition systems.
Energy Harvesting Systems
Its low power consumption and high accuracy are beneficial for energy harvesting systems that require efficient and precise power monitoring.
- Q: What is the resolution of the LTC2327HMS-18#PBF?
- A: It is an 18-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It has a sampling rate of 500 kSPS (500k samples per second).
- Q: How many channels does it have?
- A: It features a single (1) input channel.
- Q: What interface does it use?
- A: It uses a serial SPI interface.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C, suitable for extreme environments.
- Q: What is the package type?
- A: It comes in a 16-TFSOP (0.118", 3.00mm Width) package.
