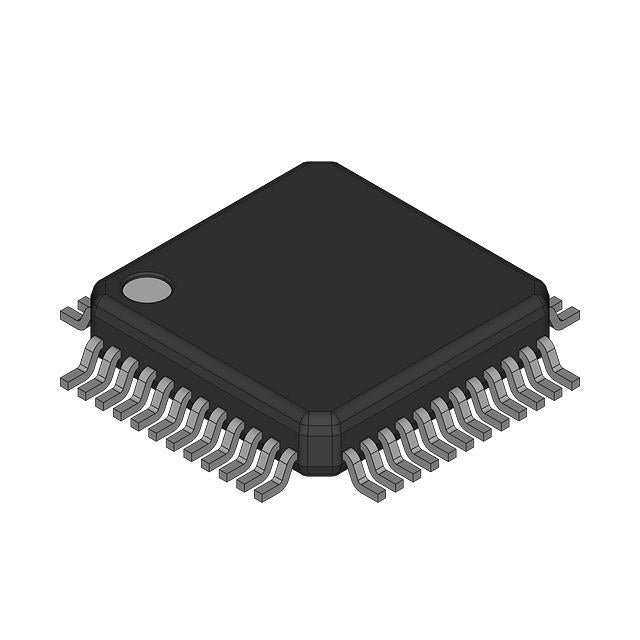

Linear Technology LTC2335HLX-18#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $40.48 | $40.48 |
| 15+ | $39.20 | $588.00 |
| 25+ | $38.35 | $958.75 |
| 50+ | $36.22 | $1,811.00 |
| 100+ | $31.96 | $3,196.00 |
| N+ | $6.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Linear Technology |
| Product Series | SoftSpan™ |
| Packaging | Bulk | |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 8 |
| Input Type | Differential |
| Data Interface | LVDS - Serial, SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7x7) |
| ROHS |  |
The LTC2335HLX-18#PBF is a high-speed, 18-bit, 8-channel analog-to-digital converter from Linear Technology. It features a sampling rate of 1 MSPS and supports both LVDS and SPI interfaces, offering flexibility for high-speed data transfer. The integrated multiplexer allows sequential sampling of 8 channels, making it ideal for multi-channel data acquisition systems. Its MUX-S/H-ADC architecture ensures accurate sampling across all channels. This ADC is designed for demanding applications in industrial automation, medical imaging, and automotive systems, providing high resolution and speed in a 48-LQFP package.
- 8-Channel Multiplexed Input: Allows monitoring of multiple signals with a single ADC, reducing system cost and board space.
- High-Speed 1 MSPS Sampling: Enables fast and accurate data capture for real-time control and monitoring applications.
- Dual Interface Options: LVDS for high-speed data transfer and SPI for simple integration, providing design flexibility.
- Extended Temperature Range: Operates from -40°C to 125°C, suitable for harsh automotive and industrial environments.
- 18-Bit Resolution: Provides high precision for accurate measurement in critical applications.
Multi-Channel Data Acquisition
The 8-channel input and 1 MSPS sampling rate make it ideal for high-speed data acquisition systems that need to monitor multiple sensors simultaneously, such as in industrial automation.
Power Grid Monitoring
In smart grid applications, the 8 channels can monitor voltage and current from multiple phases, providing high-resolution data for power quality analysis.
Medical Ultrasound
The high speed and resolution are suitable for ultrasound beamforming, where multiple transducer elements need to be sampled accurately and quickly.
Automotive Battery Management
For electric vehicles, the LTC2335 can monitor multiple battery cells, ensuring safe and efficient operation with high precision.
Vibration Analysis
In industrial machinery, the 8 channels can capture vibration data from multiple points, enabling predictive maintenance and fault detection.
Aerospace Telemetry
With a wide temperature range (-40°C to 125°C), it is suitable for aerospace telemetry systems that require reliable multi-channel data acquisition in extreme conditions.
- Q: What is the LTC2335HLX-18#PBF?
- A: It is an 18-bit, 8-channel, 1 MSPS analog-to-digital converter from Linear Technology.
- Q: What is the resolution and sampling rate?
- A: It offers 18-bit resolution and a sampling rate of 1 MSPS (mega samples per second).
- Q: How many channels does it have?
- A: It has 8 input channels with a multiplexer.
- Q: What interfaces does it support?
- A: It supports both LVDS - Serial and SPI interfaces.
- Q: What is the architecture?
- A: It uses a MUX-S/H-ADC architecture.
- Q: What is the package type?
- A: It is available in a 48-LQFP package.
