Analog Devices Inc. LTC2356IMSE-12#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.09 | $16.09 |
| 15+ | $15.58 | $233.70 |
| 25+ | $15.25 | $381.25 |
| 50+ | $14.40 | $720.00 |
| 100+ | $12.71 | $1,271.00 |
| N+ | $2.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 3.5M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.1V ~ 3.6V |
| Voltage - Supply, Digital | 3.1V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

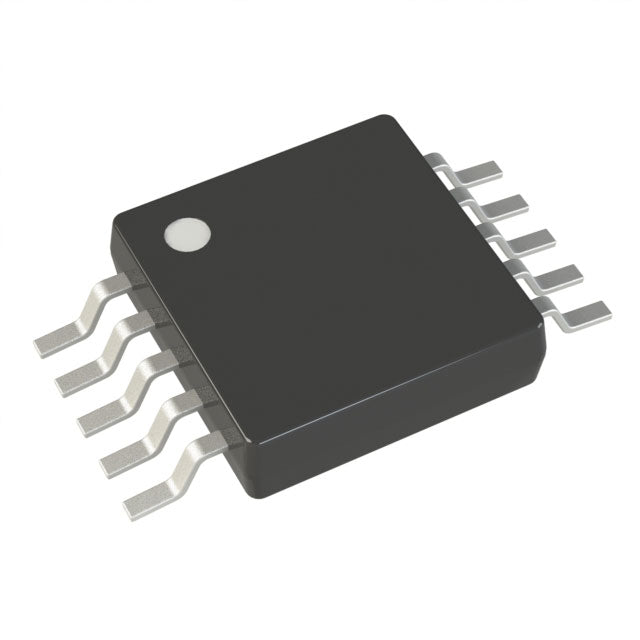

| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP |
| ROHS |  |
The LTC2356IMSE-12#PBF from Analog Devices is a high-speed, 12-bit analog-to-digital converter (ADC) capable of sampling at 3.5 MSPS. This single-channel device utilizes a sample-and-hold architecture and communicates via a simple SPI interface, making it easy to integrate into a wide range of digital systems. It supports both external and internal voltage references for design flexibility. Housed in a compact 10-MSOP package with an exposed pad for thermal management, this ADC is an excellent choice for demanding applications such as high-speed data acquisition, portable instrumentation, and industrial control systems.
- High-Speed Sampling: The 3.5 MSPS sampling rate enables the capture of fast-changing signals, making it suitable for high-frequency applications.
- Compact Footprint: The 10-MSOP package with exposed pad saves valuable board space while providing efficient heat dissipation.
- Simple Integration: The SPI interface ensures straightforward communication with most microcontrollers and DSPs, reducing design complexity.
- Design Flexibility: Support for both external and internal references allows designers to optimize for accuracy or simplify the BOM.
High-Speed Data Acquisition Systems
The 3.5 MSPS sampling rate and 12-bit resolution make the LTC2356IMSE-12#PBF ideal for high-speed data acquisition systems where fast and accurate signal digitization is critical.
Portable Instrumentation
With its low power consumption and compact 10-MSOP package, this ADC is well-suited for portable instrumentation where board space and battery life are at a premium.
Industrial Control Loops
The SPI interface simplifies integration with microcontrollers in industrial control loops, enabling precise monitoring and control of analog signals in automation systems.
Medical Monitoring Devices
The combination of speed and resolution supports medical monitoring applications that require reliable conversion of biological signals with minimal latency.
Communication Systems
In communication systems, the high sampling rate allows for digitization of intermediate frequency (IF) signals, facilitating digital signal processing for improved performance.
Test and Measurement Equipment
The accuracy and speed of this ADC make it a solid choice for test and measurement equipment, ensuring precise waveform analysis and signal characterization.
- Q: What is the resolution of the LTC2356IMSE-12#PBF?
- A: The LTC2356IMSE-12#PBF is a 12-bit analog-to-digital converter (ADC).
- Q: What is the sampling rate of this ADC?
- A: It features a sampling rate of 3.5 MSPS (mega samples per second).
- Q: How many input channels does it have?
- A: This ADC has 1 input channel.
- Q: What interface does the LTC2356IMSE-12#PBF use?
- A: It uses a serial peripheral interface (SPI) for communication.
- Q: What is the architecture of this ADC?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What is the package type?
- A: It comes in a 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) exposed pad package.
LTC2356IMSE-12#PBF.pdf
- Q: What is the resolution of the LTC2356IMSE-12#PBF?
- A: The LTC2356IMSE-12#PBF is a 12-bit analog-to-digital converter (ADC).
- Q: What is the sampling rate of this ADC?
- A: It features a sampling rate of 3.5 MSPS (mega samples per second).
- Q: How many input channels does it have?
- A: This ADC has 1 input channel.
- Q: What interface does the LTC2356IMSE-12#PBF use?
- A: It uses a serial peripheral interface (SPI) for communication.
- Q: What is the architecture of this ADC?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What is the package type?
- A: It comes in a 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) exposed pad package.
