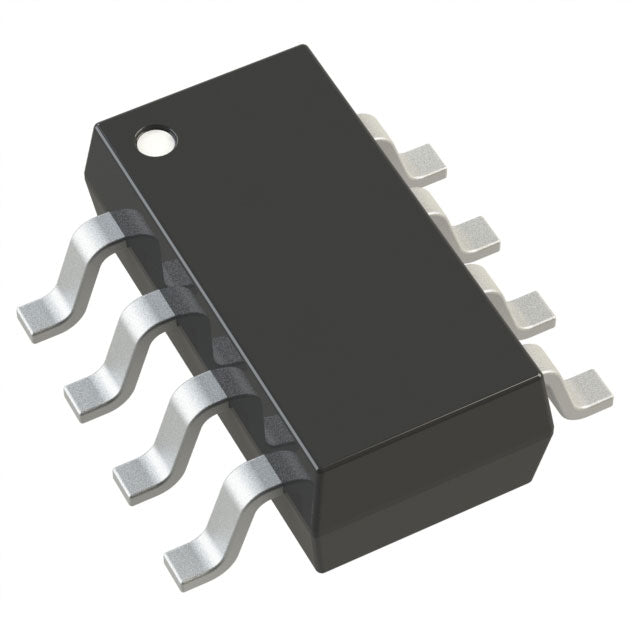

Analog Devices Inc. LTC2360CTS8#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.55 | $8.55 |
| 15+ | $1.97 | $29.55 |
| 25+ | $1.93 | $48.25 |
| 50+ | $1.82 | $91.00 |
| 100+ | $1.61 | $161.00 |
| N+ | $0.32 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.35V ~ 3.6V |
| Voltage - Supply, Digital | 2.35V ~ 3.6V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| ROHS |  |
The LTC2360CTS8#TRPBF from Analog Devices is a 12-bit, 100k SPS Analog-to-Digital Converter (ADC) featuring a single input channel and an SPI interface. Its S/H architecture ensures accurate sampling, while the external reference provides flexibility for various measurement ranges. Housed in a compact SOT-23-8 package, this ADC is designed for space-constrained applications requiring reliable performance.
- High Accuracy: 12-bit resolution provides fine granularity for precise signal measurement.
- Fast Sampling: 100k SPS sampling rate captures dynamic signals effectively for real-time processing.
- Compact Design: SOT-23-8 Thin package minimizes PCB space, ideal for portable devices.
- Flexible Reference: External reference input enables ratiometric measurements and custom voltage ranges.
- Easy Integration: Standard SPI interface simplifies connection to microcontrollers and digital systems.
Portable Instrumentation
The 12-bit resolution and 100k SPS sampling rate make it ideal for battery-powered portable instruments where low power consumption and small footprint (SOT-23-8) are critical.
Data Acquisition Systems
With its SPI interface and external reference support, this ADC can be easily integrated into multi-channel data acquisition systems for precise sensor signal digitization.
Industrial Process Control
The 0°C to 70°C operating temperature range suits standard industrial environments, providing reliable conversion for process monitoring and control loops.
Medical Monitoring Devices
Its compact size and 12-bit accuracy are suitable for portable medical devices like glucose meters or pulse oximeters that require low-power signal conversion.
Automotive Sensor Interfaces
While not rated for extreme temperatures, it can be used in non-engine automotive applications for converting analog sensor outputs (e.g., pressure, temperature) into digital signals for ECUs.
Precision Voltage Measurement
The external reference input allows for ratiometric measurements, enabling high-accuracy voltage monitoring in test and measurement equipment.
- Q: What is the resolution of the LTC2360CTS8#TRPBF?
- A: The LTC2360CTS8#TRPBF is a 12-bit Analog-to-Digital Converter (ADC).
- Q: What is the sampling rate of this ADC?
- A: It supports a sampling rate of 100k SPS (samples per second).
- Q: How many input channels does it have?
- A: This device features a single (1) input channel.
- Q: What digital interface does the LTC2360 use?
- A: It uses a Serial Peripheral Interface (SPI) for communication.
- Q: What is the architecture of this ADC?
- A: It utilizes a Sample-and-Hold (S/H) ADC architecture.
- Q: What is the package type?
- A: It is available in a SOT-23-8 Thin, TSOT-23-8 package.
