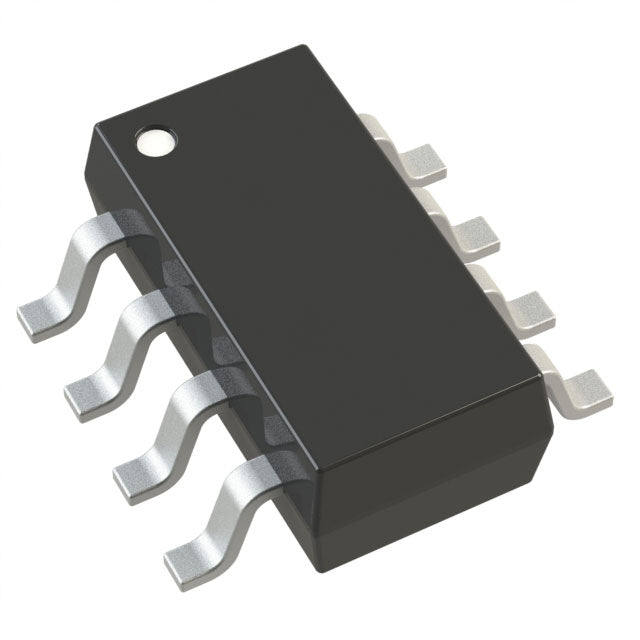

Analog Devices Inc. LTC2360ITS8#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.80 | $9.80 |
| 15+ | $2.25 | $33.75 |
| 25+ | $2.21 | $55.25 |
| 50+ | $2.08 | $104.00 |
| 100+ | $1.84 | $184.00 |
| N+ | $0.37 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.35V ~ 3.6V |
| Voltage - Supply, Digital | 2.35V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| ROHS |  |
The LTC2360ITS8#TRPBF is a 12-bit, 100k SPS analog-to-digital converter from Analog Devices. It features a single input channel with a successive approximation (S/H) architecture and requires an external reference for precise voltage scaling. The SPI interface ensures easy integration with digital systems. Packaged in a thin SOT-23-8 (TSOT-23-8), it operates over -40°C to 85°C, making it suitable for industrial, automotive, and portable applications.
- Precision Conversion: 12-bit resolution ensures accurate signal digitization.
- Low Power: Ideal for battery-powered applications.
- Small Package: TSOT-23-8 saves board space.
- SPI Interface: Easy to connect to microcontrollers.
- Wide Temperature Range: -40°C to 85°C for industrial use.
Industrial Control
The LTC2360ITS8#TRPBF's 12-bit resolution and 100k SPS sampling rate are well-suited for industrial control and monitoring systems.
Portable Instruments
Its low power consumption and small TSOT-23-8 package make it ideal for handheld measurement devices.
Automotive Electronics
With a temperature range of -40°C to 85°C, it can be used in automotive sensor interfaces and battery management.
Data Logging
The SPI interface simplifies connection to data loggers and microcontrollers for environmental monitoring.
Medical Devices
Accurate conversion is essential for medical monitoring equipment like ECG and EEG systems.
Communication Equipment
Used in base stations and radio systems for analog signal digitization.
- Q: What is the LTC2360ITS8#TRPBF?
- A: It is a 12-bit analog-to-digital converter from Analog Devices with a S/H architecture.
- Q: What is the sampling rate?
- A: It has a sampling rate of 100k SPS.
- Q: How many channels does it have?
- A: It has a single input channel.
- Q: What interface does it use?
- A: It uses the SPI interface.
- Q: What is the reference type?
- A: It requires an external reference.
- Q: What is the temperature range?
- A: It operates from -40°C to 85°C.
