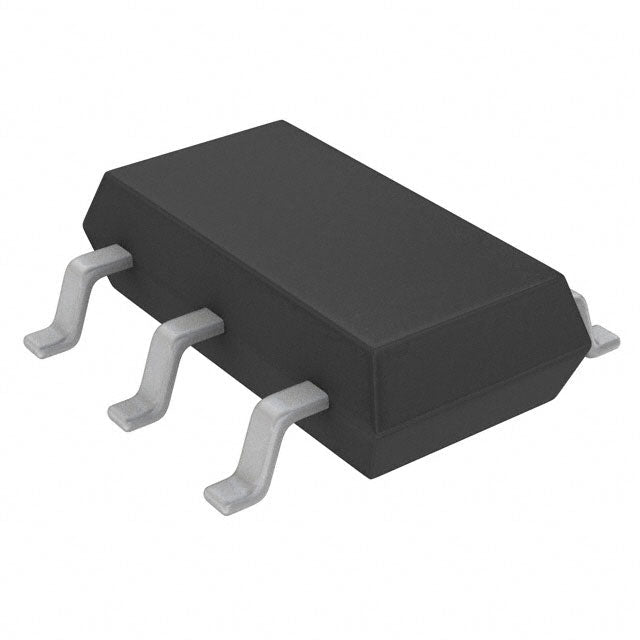

Analog Devices Inc. LTC2361IS6#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.75 | $10.75 |
| 15+ | $2.47 | $37.05 |
| 25+ | $2.42 | $60.50 |
| 50+ | $2.29 | $114.50 |
| 100+ | $2.02 | $202.00 |
| N+ | $0.40 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.35V ~ 3.6V |
| Voltage - Supply, Digital | 2.35V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
| ROHS |  |
The LTC2361IS6 is a 12-bit, 250k SPS analog-to-digital converter from Analog Devices, offering excellent precision in an ultra-small package. It features a single input channel and a simple SPI interface, making it easy to integrate into a wide range of systems. Its S/H architecture ensures accurate sampling, while the wide temperature range supports industrial and automotive applications. The TSOT-23 package is perfect for space-constrained designs.
- High Precision: 12-bit resolution provides fine granularity for accurate signal measurement.
- Compact Footprint: The tiny TSOT-23-6 package is ideal for miniaturized electronic devices.
- Fast Conversion: 250k SPS sampling rate handles dynamic signals effectively.
- Easy to Use: Standard SPI interface simplifies firmware development and system integration.
Precision Sensor Interfaces
The 12-bit resolution and 250k SPS sampling rate make the LTC2361 ideal for digitizing precision analog sensors like strain gauges and thermocouples with high accuracy.
Portable Medical Devices
Its small TSOT-23 package and low power consumption enable integration into compact, battery-powered medical monitoring equipment.
Industrial Process Control
Use this ADC in PLCs and industrial controllers to convert 4-20mA loop signals or 0-10V outputs from transmitters with reliable precision.
Data Logging Systems
The SPI interface and fast sampling rate allow for efficient data logging in environmental monitoring or test and measurement setups.
Automotive Electronics
With an operating range of -40°C to 85°C, it is suitable for automotive sensor conditioning and battery management systems.
Communication Infrastructure
Digitize analog control signals in base stations and networking equipment where space and reliability are critical.
- Q: What is the resolution of the LTC2361IS6?
- A: The LTC2361 is a 12-bit analog-to-digital converter, providing high precision for its size.
- Q: What is the maximum sampling rate?
- A: It supports a sampling rate of 250k SPS, suitable for many industrial and instrumentation applications.
- Q: How many input channels does it have?
- A: This ADC features a single input channel, ideal for dedicated signal conversion.
- Q: What interface does the LTC2361 use?
- A: It uses a standard SPI interface for easy digital communication.
- Q: What is the architecture of this ADC?
- A: It uses a successive approximation (S/H-ADC) architecture for fast and accurate conversions.
- Q: What package is available?
- A: It comes in a tiny SOT-23-6 Thin / TSOT-23-6 package, perfect for compact designs.
