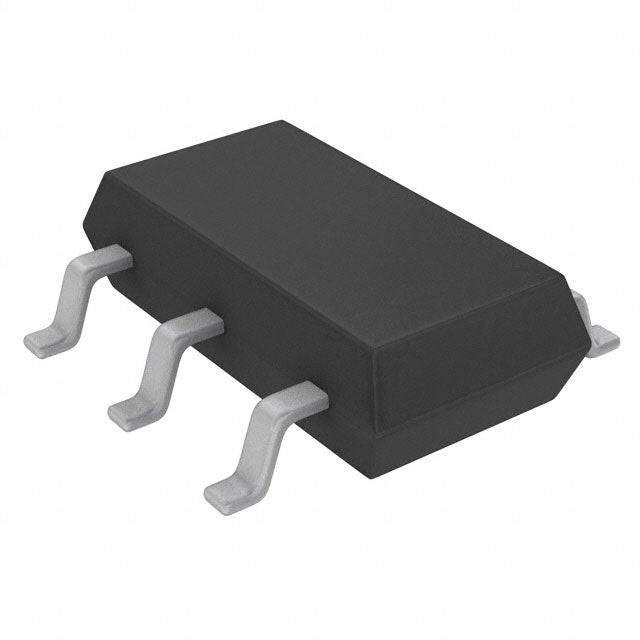

Analog Devices Inc. LTC2365HS6#TRMPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.71 | $8.71 |
| 15+ | $8.44 | $126.60 |
| 25+ | $8.25 | $206.25 |
| 50+ | $7.79 | $389.50 |
| 100+ | $6.88 | $688.00 |
| N+ | $1.38 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.35V ~ 3.6V |
| Voltage - Supply, Digital | 2.35V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
| ROHS |  |
The LTC2365HS6 is a 12-bit, single-channel ADC from Analog Devices, offering a fast 1M SPS sampling rate. Its SPI interface ensures easy connectivity with digital controllers. The S/H architecture provides accurate sampling of high-frequency signals. With a -40°C to 125°C operating range and a compact SOT-23-6 package, it is well-suited for automotive, industrial, and high-speed data acquisition applications.
- High-Speed Performance: 1M SPS sampling rate captures fast signals with precision.
- Wide Temperature Range: -40°C to 125°C for harsh environments.
- Small Footprint: SOT-23-6 package ideal for space-limited designs.
- Easy Integration: SPI interface simplifies connection to microcontrollers and DSPs.
High-Speed Data Acquisition
The 1M SPS sampling rate allows capture of fast transient signals in test and measurement equipment.
Communication Systems
Its high throughput and SPI interface make it suitable for digitizing I/Q signals in software-defined radios.
Automotive Sensor Networks
The wide temperature range and small footprint enable integration into engine control units and transmission sensors.
Industrial Automation
Fast and accurate conversion supports real-time monitoring in robotic control and factory automation.
Medical Ultrasound
The high sampling rate is beneficial for digitizing ultrasound echo signals for image processing.
- Q: What is the resolution of the LTC2365HS6?
- A: This ADC provides 12-bit resolution.
- Q: What is the maximum sampling rate?
- A: It supports a high sampling rate of 1M SPS (1 MSPS).
- Q: How many channels are available?
- A: It has a single (1) input channel.
- Q: What interface does it use?
- A: It uses a standard SPI interface.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C.
- Q: What package is it offered in?
- A: It is available in a SOT-23-6 Thin / TSOT-23-6 package.
