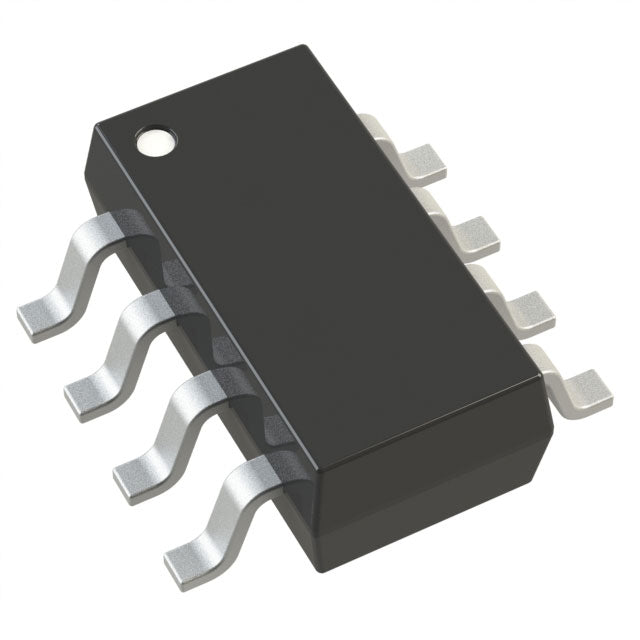

Analog Devices Inc. LTC2365ITS8#TRMPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.55 | $8.55 |
| 15+ | $8.28 | $124.20 |
| 25+ | $8.10 | $202.50 |
| 50+ | $7.65 | $382.50 |
| 100+ | $6.75 | $675.00 |
| N+ | $1.35 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.35V ~ 3.6V |
| Voltage - Supply, Digital | 2.35V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| ROHS |  |
The LTC2365ITS8#TRMPBF is a high-speed 12-bit analog-to-digital converter from Analog Devices, capable of sampling at 1M SPS. It features a single input channel and a S/H-ADC architecture. The device communicates via an SPI interface, ensuring fast data transfer to microcontrollers or DSPs. Its compact SOT-23-8 Thin package is ideal for space-constrained designs. With an operating temperature range of -40°C to 85°C, this ADC is well-suited for high-speed data acquisition, communication systems, and portable test equipment.
- High-Speed Performance: 1M SPS sampling rate enables capture of fast-changing signals for real-time analysis.
- Compact Footprint: The tiny TSOT-23-8 package is perfect for miniaturized portable devices.
- Wide Temperature Range: Operates reliably from -40°C to 85°C, suitable for automotive and industrial environments.
- Fast SPI Interface: Ensures quick data transfer to the host processor, minimizing latency.
High-Speed Data Acquisition
The LTC2365ITS8#TRMPBF's 1M SPS sampling rate makes it ideal for high-speed data acquisition systems, such as those used in digital oscilloscopes or spectrum analyzers, where capturing fast transient signals is essential.
Communication Systems
In wireless communication base stations, this ADC can digitize intermediate frequency (IF) signals for digital signal processing, enabling advanced modulation and demodulation techniques.
Medical Imaging
For ultrasound machines and other medical imaging equipment, the high sampling rate and 12-bit resolution allow for detailed image capture and processing in real-time.
Portable Test Equipment
The compact TSOT-23-8 package and high speed make it suitable for handheld testers and portable analyzers that require fast, accurate measurements in the field.
Industrial High-Speed Control
In high-speed industrial control systems, such as servo motor drives, this ADC can digitize current feedback signals quickly, enabling precise and responsive control loops.
Automotive Radar Systems
With its high sampling rate and wide temperature range (-40°C to 85°C), the LTC2365ITS8#TRMPBF can be used in automotive radar for object detection and advanced driver-assistance systems (ADAS).
- Q: What is the LTC2365ITS8#TRMPBF?
- A: It is a 12-bit analog-to-digital converter (ADC) from Analog Devices with a S/H-ADC architecture.
- Q: What is the resolution of the LTC2365ITS8#TRMPBF?
- A: It provides 12-bit resolution, offering a good balance between precision and speed.
- Q: What is the sampling rate of the LTC2365ITS8#TRMPBF?
- A: The sampling rate is 1M SPS (1,000,000 samples per second), suitable for high-speed applications.
- Q: How many channels does the LTC2365ITS8#TRMPBF have?
- A: It has 1 input channel.
- Q: What interface does the LTC2365ITS8#TRMPBF use?
- A: It uses an SPI interface for communication.
- Q: What is the package type for the LTC2365ITS8#TRMPBF?
- A: It comes in a SOT-23-8 Thin, TSOT-23-8 package.
