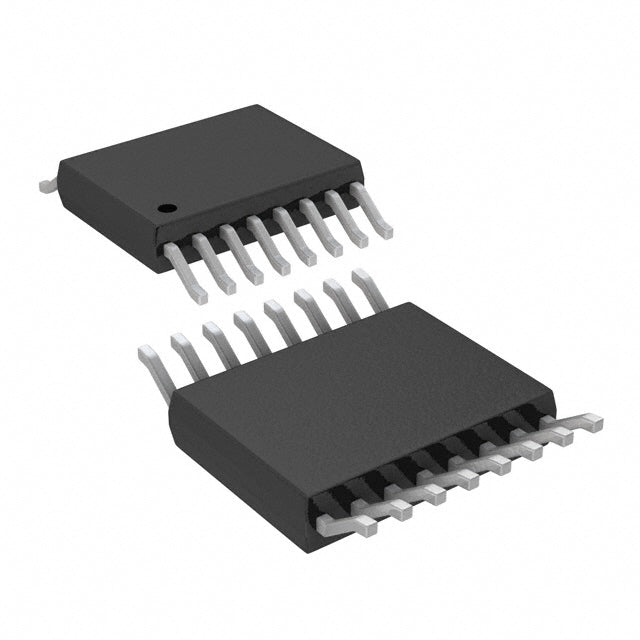

Analog Devices Inc. LTC2380IMS-24#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $64.95 | $64.95 |
| 15+ | $62.90 | $943.50 |
| 25+ | $61.53 | $1,538.25 |
| 50+ | $58.11 | $2,905.50 |
| 100+ | $51.28 | $5,128.00 |
| N+ | $10.26 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 2M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 1.71V ~ 5.25V |
| Voltage - Supply, Digital | 1.71V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-TFSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 16-MSOP |
| ROHS |  |
The LTC2380IMS-24#PBF is a 24-bit, 2 MSPS analog-to-digital converter from Analog Devices, housed in a slim 16-TFSOP package. It features a single channel with an SPI interface, designed for high-precision, low-power applications. The device requires an external reference and operates over an industrial temperature range. Its compact footprint makes it ideal for portable and space-limited instrumentation, while delivering excellent noise performance.
- Ultra-Precision: 24-bit resolution ensures accurate digitization of small analog signals.
- High-Speed Conversion: 2 MSPS sampling rate supports real-time measurement in dynamic systems.
- Space-Saving Package: 16-TFSOP (3mm width) is ideal for compact, portable devices.
- Industrial Reliability: -40°C to 85°C operating range suits demanding environments.
- Easy Integration: Standard SPI interface simplifies connection to microcontrollers and FPGAs.
High-Resolution Temperature Sensing
With 24-bit resolution, the ADC can digitize thermocouple outputs with microvolt-level precision, enabling accurate temperature control in industrial ovens.
Portable Medical Devices
The compact TFSOP package and low power consumption make it suitable for battery-powered glucose monitors or pulse oximeters.
Seismic Data Recording
In geophysical surveys, the ADC's high resolution captures weak seismic reflections, improving subsurface imaging for oil exploration.
Precision Current Sensing
For motor control, the ADC digitizes shunt resistor voltages with high accuracy, enabling precise torque and speed regulation.
Environmental Monitoring
In air quality stations, the ADC processes signals from electrochemical sensors, detecting trace gases with high reliability.
Laboratory Bench Instruments
The SPI interface and 2 MSPS rate allow benchtop multimeters to achieve high throughput while maintaining 24-bit accuracy.
- Q: What is the LTC2380IMS-24#PBF?
- A: It is a 24-bit, single-channel, precision ADC from Analog Devices with an SPI interface.
- Q: What is the resolution?
- A: It offers 24-bit resolution, ensuring high accuracy for sensitive measurements.
- Q: What is the sampling rate?
- A: The sampling rate is 2 MSPS, providing fast conversion without compromising precision.
- Q: How many channels does it have?
- A: It has 1 input channel, optimized for single-channel high-performance applications.
- Q: What interface does it use?
- A: It uses a 4-wire SPI interface, compatible with standard digital controllers.
- Q: What is the package type?
- A: It comes in a 16-TFSOP package with a width of 3.00mm, offering a slim profile for compact designs.
