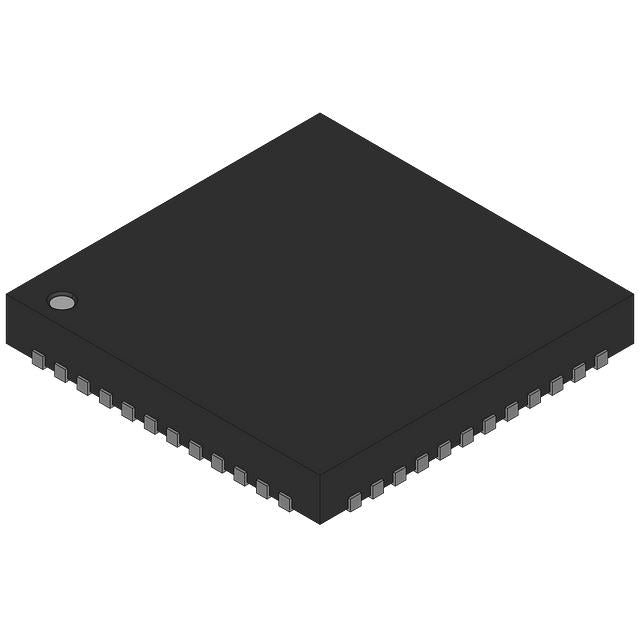

Linear Technology LTC2392IUK-16#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $30.45 | $30.45 |
| 15+ | $29.49 | $442.35 |
| 25+ | $28.85 | $721.25 |
| 50+ | $27.24 | $1,362.00 |
| 100+ | $24.04 | $2,404.00 |
| N+ | $4.81 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Linear Technology |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-WFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (7x7) |
| ROHS |  |
The LTC2392IUK-16#PBF is a precision 16-bit, 500 kSPS analog-to-digital converter from Linear Technology, designed for high-accuracy applications. It offers a flexible choice of SPI or parallel interfaces, allowing for easy integration into various digital systems. The S/H-ADC architecture ensures accurate sampling of analog signals. This ADC is ideal for industrial, medical, and automotive applications where precision and reliability are paramount.
- High Precision: 16-bit resolution provides exceptional accuracy for demanding measurement applications.
- Flexible Interfacing: Supports both SPI and parallel interfaces, offering design flexibility for various host controllers.
- Compact Package: The 48-WFQFN package saves valuable board space in space-constrained designs.
- Wide Operating Range: Operates reliably from -40°C to 85°C, suitable for harsh environments.
Precision Industrial Control
The 16-bit resolution and 500 kSPS sampling rate provide the accuracy needed for high-precision industrial process control and monitoring systems.
Medical Instrumentation
In patient monitoring and diagnostic equipment, the high resolution ensures accurate measurement of vital signs and biological signals.
Data Acquisition Systems
With its dual SPI and parallel interfaces, this ADC easily connects to microcontrollers and DSPs in multi-channel data logging systems.
Automotive Sensor Interfaces
The wide temperature range and high accuracy make it suitable for automotive applications like battery management systems and motor control.
Scientific Instrumentation
For laboratory equipment requiring precise measurements, the 16-bit resolution offers the fine detail needed for spectroscopy and chromatography.
Portable Test Equipment
The low power consumption and small package make it ideal for battery-powered handheld test and measurement devices.
- Q: What is the resolution of the LTC2392IUK-16#PBF?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: The LTC2392IUK-16#PBF has a sampling rate of 500 kSPS.
- Q: How many channels does this ADC have?
- A: It features a single input channel.
- Q: What interfaces are supported?
- A: It supports both SPI and Parallel interfaces for flexible system integration.
- Q: What is the architecture of this ADC?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type?
- A: It is available in a 48-WFQFN Exposed Pad package.
