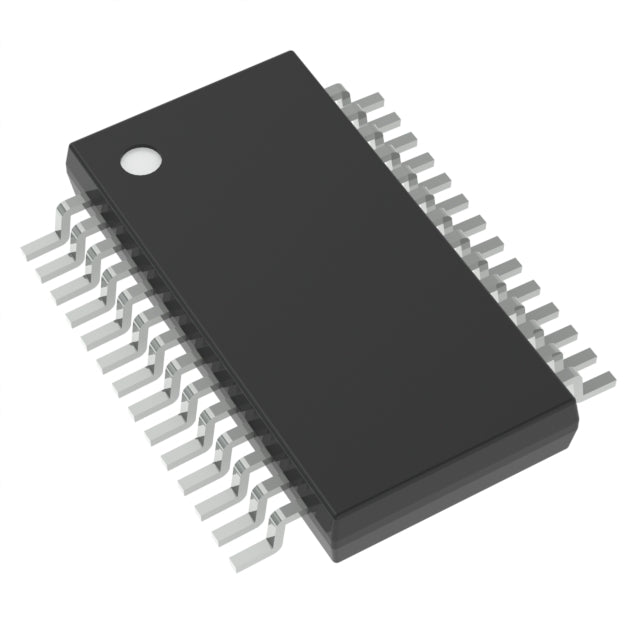

Analog Devices Inc. LTC2404CG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.95 | $16.95 |
| 15+ | $16.41 | $246.15 |
| 25+ | $16.06 | $401.50 |
| 50+ | $15.16 | $758.00 |
| 100+ | $13.38 | $1,338.00 |
| N+ | $2.68 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | microPOWER™ |
| Packaging | Tube | |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 7.5 |
| Number of Inputs | 4 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC2404CG#PBF is a 24-bit analog-to-digital converter from Analog Devices, offering a 7.5 SPS sampling rate. Its 4-channel multiplexer allows for multi-signal measurement with high precision. The SPI interface provides easy digital communication. This ADC is designed for applications requiring extremely accurate conversion of slow analog signals, such as weigh scales, environmental monitoring, and medical instrumentation. It is available in a 28-SSOP package.
- Ultra-High Resolution: 24-bit output delivers exceptional accuracy for precision measurements.
- Multi-Channel Input: 4 channels enable monitoring of multiple sensors without external mux.
- Simple SPI Interface: Facilitates easy integration with microcontrollers.
- Low Sampling Rate Optimized for Precision: 7.5 SPS reduces noise for stable, high-accuracy readings.
Precision Weigh Scales
The LTC2404CG#PBF's 24-bit resolution and 7.5 SPS sampling rate make it ideal for high-precision weigh scales and force measurement systems.
Temperature and Pressure Measurement
Its high resolution enables accurate digitization of slow-changing signals from thermocouples and pressure transducers in laboratory and industrial settings.
Data Acquisition for Environmental Monitoring
With 4 channels and SPI interface, it can monitor multiple environmental sensors like humidity and gas detectors with high accuracy.
Medical Instrumentation
In devices like patient monitors and analytical instruments, the 24-bit resolution ensures precise measurement of physiological signals.
Calibration Equipment
The high accuracy and stability make it suitable for calibration standards and reference instruments requiring exceptional linearity.
- Q: What is the resolution of the LTC2404CG#PBF?
- A: It is a 24-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 7.5 SPS (samples per second).
- Q: How many channels does it have?
- A: It has 4 input channels.
- Q: What interface does it use?
- A: It uses an SPI interface.
- Q: What is the architecture?
- A: The architecture is MUX-ADC, featuring a multiplexer.
- Q: What package is available?
- A: It comes in a 28-SSOP (0.209", 5.30mm Width) package.
