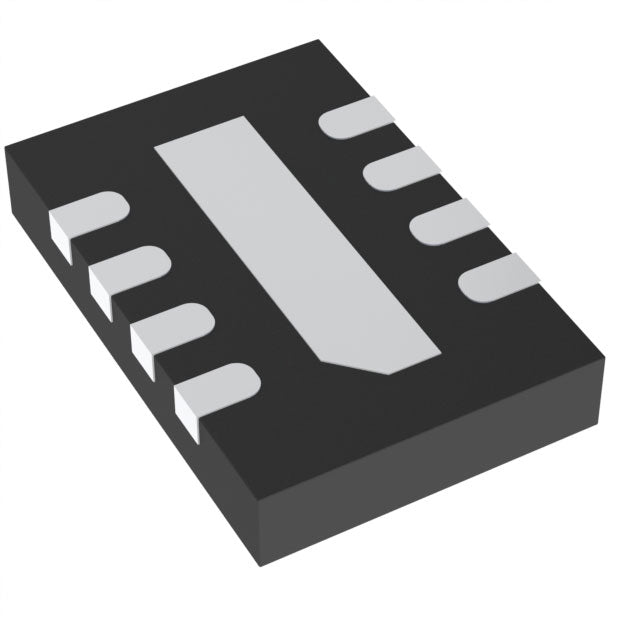

Analog Devices Inc. LTC2451IDDB#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.40 | $8.40 |
| 15+ | $1.93 | $28.95 |
| 25+ | $1.89 | $47.25 |
| 50+ | $1.79 | $89.50 |
| 100+ | $1.58 | $158.00 |
| N+ | $0.32 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 60 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | I2C |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x2) |
| ROHS |  |
The LTC2451IDDB#TRPBF from Analog Devices is a high-precision 16-bit Analog-to-Digital Converter (ADC) designed for applications requiring exceptional accuracy. It features a low sampling rate of 60 SPS, which is optimized for stable and noise-free conversion of slow-moving signals. The device includes a single input channel and communicates via a simple I2C interface, making it easy to integrate into digital systems. With an external reference and an operating temperature range of -40°C to 85°C, it is well-suited for precision instrumentation, medical, and industrial applications. The compact 8-WFDFN package is ideal for space-constrained designs.
- Ultra-High Resolution: 16-bit resolution delivers exceptional accuracy, making it perfect for precision measurement applications.
- Low Noise Performance: The 60 SPS sampling rate is optimized for low-noise, high-stability conversions, critical for sensitive sensors.
- Simple I2C Interface: Requires only two wires for communication, simplifying PCB routing and reducing pin count.
- Low Power Consumption: Ideal for battery-powered and portable devices where power efficiency is paramount.
- Compact Package: The 8-WFDFN package with exposed pad saves space and aids in thermal management.
Precision Weigh Scales
The 16-bit resolution and 60 SPS sampling rate are ideal for weigh scale applications, where high accuracy and stability are required for precise weight measurements.
Temperature Sensing
When paired with thermocouples or RTDs, the LTC2451IDDB#TRPBF provides the high-resolution digitization needed for accurate temperature monitoring in industrial and scientific equipment.
Portable Medical Devices
Its low power consumption and small package make it suitable for battery-powered medical devices like glucose meters and pulse oximeters, where precision is critical.
Data Acquisition for Sensors
For low-frequency sensor signals, such as pressure or humidity, this ADC offers the high resolution necessary to capture subtle changes in the analog signal.
Instrumentation Amplifiers
The I2C interface simplifies connection to digital systems, making it an excellent choice for digitizing the output of precision instrumentation amplifiers in test equipment.
Environmental Monitoring
In weather stations or air quality monitors, the LTC2451 can accurately convert signals from various environmental sensors, ensuring reliable data logging.
- Q: What is the resolution of the LTC2451IDDB#TRPBF?
- A: This ADC offers a high 16-bit resolution, providing excellent precision for demanding measurement applications.
- Q: What is the sampling rate?
- A: The LTC2451 has a sampling rate of 60 SPS, optimized for high-accuracy, low-speed measurements.
- Q: How many channels does it have?
- A: It features a single (1) input channel, ideal for dedicated precision sensing.
- Q: What interface does it use?
- A: It uses the I2C (Inter-Integrated Circuit) interface, which requires only two wires for communication.
- Q: What is the operating temperature range?
- A: The device operates over -40°C to 85°C, suitable for a wide range of environments.
- Q: What package is it available in?
- A: It comes in a compact 8-WFDFN Exposed Pad package, which is suitable for space-constrained designs.
