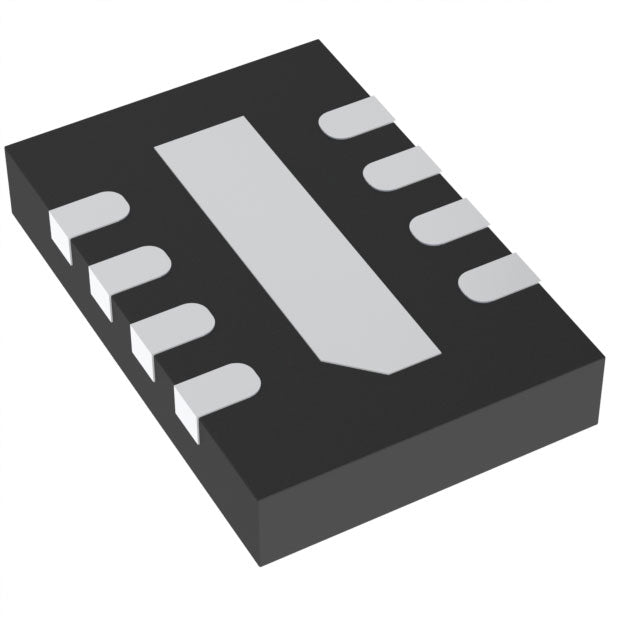

Analog Devices Inc. LTC2452CDDB#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.65 | $7.65 |
| 15+ | $1.76 | $26.40 |
| 25+ | $1.72 | $43.00 |
| 50+ | $1.62 | $81.00 |
| 100+ | $1.43 | $143.00 |
| N+ | $0.29 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 60 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x2) |
| ROHS |  |
The LTC2452CDDB#TRPBF from Analog Devices is a 16-bit analog-to-digital converter featuring a single channel and a 60 SPS sampling rate. It utilizes the SPI interface for efficient data transfer and requires an external reference for flexible voltage scaling. The compact 8-WFDFN package makes it suitable for space-constrained designs. This ADC is ideal for precision measurement applications including industrial sensors, medical devices, and laboratory instruments where accuracy is paramount.
- Ultra-High Resolution: 16-bit output ensures exceptional detail in measurement data.
- Low Speed, High Accuracy: 60 SPS is optimized for noise-free, stable readings.
- SPI Interface: Standard interface for easy integration with most microcontrollers.
- External Reference: Allows precise control over the input voltage range.
Weigh Scale Systems
The 16-bit resolution and 60 SPS rate are perfect for load cell digitization in industrial and laboratory weighing scales, providing stable and accurate weight readings.
Temperature Measurement
For thermocouple or RTD signal conditioning, this ADC offers the precision needed to resolve small voltage changes corresponding to temperature variations.
Precision Voltage Monitoring
In battery management systems, the LTC2452CDDB#TRPBF can monitor cell voltages with high accuracy, ensuring safe and efficient operation.
Data Logging Equipment
For environmental data loggers, the SPI interface and low power consumption make it suitable for long-term, battery-operated monitoring applications.
Calibration Instruments
In calibration and metrology equipment, the 16-bit accuracy supports generating and measuring precise analog signals.
- Q: What is the LTC2452CDDB#TRPBF?
- A: It is a 16-bit analog-to-digital converter with an external reference and SPI interface.
- Q: What is the resolution?
- A: It provides 16-bit resolution for high-precision measurements.
- Q: What is the sampling rate?
- A: The sampling rate is 60 SPS, optimized for slow, accurate readings.
- Q: How many channels are available?
- A: It has a single (1) input channel.
- Q: What interface does it use?
- A: It uses the SPI serial interface for communication.
- Q: What is the package type?
- A: It comes in an 8-WFDFN exposed pad package, operating from 0°C to 70°C.
LTC2452CDDB#TRPBF.pdf
