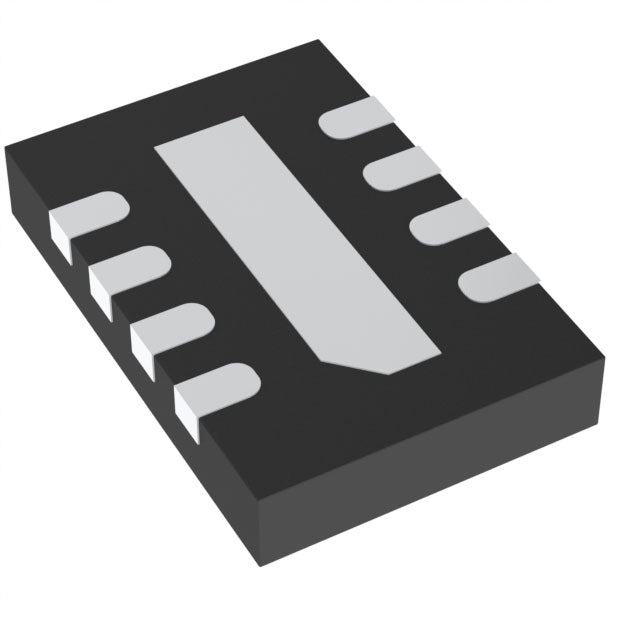

Analog Devices Inc. LTC2453CDDB#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.65 | $7.65 |
| 15+ | $1.76 | $26.40 |
| 25+ | $1.72 | $43.00 |
| 50+ | $1.62 | $81.00 |
| 100+ | $1.43 | $143.00 |
| N+ | $0.29 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 60 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | I2C |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x2) |
| ROHS |  |
The LTC2453CDDB#TRPBF from Analog Devices is a 16-bit analog-to-digital converter designed for precise, low-speed measurement applications. It features a single input channel with a sampling rate of 60 SPS and communicates via the I2C interface, simplifying system integration. The external reference allows users to set the full-scale range according to their specific sensor output. Housed in a compact 8-WFDFN package, this ADC is ideal for industrial, medical, and instrumentation applications where accuracy and small footprint are essential.
- High Precision: 16-bit resolution provides fine granularity for accurate measurement of small signal variations.
- Simple Integration: I2C interface reduces pin count and simplifies connection to microcontrollers.
- Flexible Reference: External reference input allows customization of the input voltage range to match sensor outputs.
- Compact Size: 8-WFDFN package saves board space in space-constrained designs.
Precision Sensor Digitization
The 16-bit resolution and 60 SPS sampling rate make it ideal for digitizing slow-changing sensors like temperature probes, strain gauges, and pressure transducers with high accuracy.
Industrial Process Control
In industrial automation, the LTC2453CDDB#TRPBF can monitor 4-20 mA loop signals or voltage outputs from transmitters, ensuring precise control in manufacturing environments.
Battery-Powered Instruments
With its low-speed operation and I2C interface, this ADC is well-suited for portable instruments where power consumption is critical and measurement updates are infrequent.
Data Acquisition Systems
For multi-channel DAQ systems, multiple LTC2453 devices can be connected via I2C bus, allowing synchronized sampling of various analog signals with minimal wiring.
Medical Instrumentation
The high resolution supports medical devices like digital thermometers or blood pressure monitors that require accurate conversion of physiological signals within a 0°C to 70°C operating range.
- Q: What type of ADC is the LTC2453CDDB#TRPBF?
- A: It is a 16-bit analog-to-digital converter with an external reference and I2C interface.
- Q: What is the resolution of this ADC?
- A: The LTC2453CDDB#TRPBF offers 16-bit resolution for high-precision measurements.
- Q: What is the sampling rate?
- A: The sampling rate is 60 SPS (samples per second), suitable for slow, precise signals.
- Q: How many input channels does it have?
- A: It features a single (1) input channel.
- Q: What interface does it use?
- A: It uses the I2C serial interface for communication.
- Q: What is the package type?
- A: It comes in an 8-WFDFN exposed pad package, operating from 0°C to 70°C.
