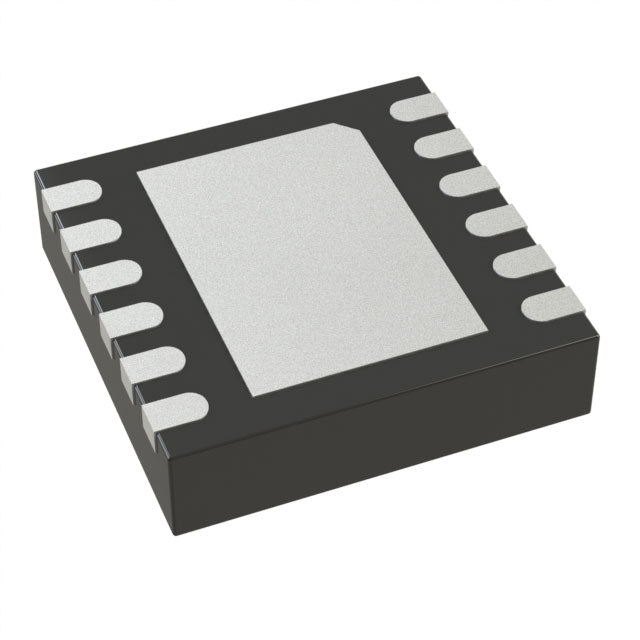

Analog Devices Inc. LTC2460CDD#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.05 | $10.05 |
| 15+ | $2.31 | $34.65 |
| 25+ | $2.26 | $56.50 |
| 50+ | $2.13 | $106.50 |
| 100+ | $1.88 | $188.00 |
| N+ | $0.38 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 60 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x3) |
| ROHS |  |
The LTC2460 is a precision 16-bit analog-to-digital converter (ADC) from Analog Devices, designed for applications requiring high accuracy and low power. It features a single input channel and a sampling rate of 60 SPS, making it ideal for DC and low-frequency signal measurement. The device integrates an internal reference and uses a simple SPI interface for data transfer. Its compact 12-WFDFN package and wide operating temperature range make it suitable for industrial, medical, and portable instrumentation where space and reliability are key.
- High Precision: 16-bit resolution ensures detailed and accurate conversion of analog signals, critical for measurement and control systems.
- Integrated Reference: The internal reference simplifies design, reduces external component count, and improves overall system stability.
- Simple Digital Interface: The SPI interface allows for easy connection to a wide range of microcontrollers, reducing firmware complexity.
- Compact Package: The 12-WFDFN exposed pad package saves valuable board space in space-constrained designs.
- Reliable Operation: Guaranteed operation from 0°C to 70°C ensures dependable performance in commercial environments.
Precision Sensor Signal Digitization
The 16-bit resolution and internal reference make the LTC2460CDD#TRPBF ideal for digitizing outputs from precision sensors like strain gauges and thermocouples, ensuring minimal signal degradation.
Low-Speed Data Acquisition Systems
With a 60 SPS sampling rate and SPI interface, this ADC is perfect for multi-channel data loggers that prioritize accuracy over speed, such as environmental monitoring systems.
Industrial Process Control
In industrial automation, the LTC2460's stable performance over 0°C to 70°C and its compact 12-WFDFN package allow for integration into PLC analog input modules for precise control loops.
Medical Instrumentation
The high resolution and low noise characteristics are suitable for battery-powered medical devices like digital thermometers or blood pressure monitors, where accurate conversion is critical.
Portable Instrumentation
The small footprint and low power consumption of the LTC2460CDD#TRPBF make it an excellent choice for handheld multimeters and portable calibration equipment.
Reference Design for Precision Analog Front-Ends
Engineers can use this ADC as a core component in reference designs for weigh scales or pressure transmitters, leveraging its internal reference to reduce external component count.
- Q: What type of ADC is the LTC2460CDD#TRPBF?
- A: It is a 16-bit analog-to-digital converter (ADC) with a delta-sigma architecture, ideal for precision measurement applications.
- Q: What is the resolution of this ADC?
- A: The LTC2460CDD#TRPBF offers 16-bit resolution, providing high accuracy for demanding sensor and instrumentation applications.
- Q: What is the sampling rate?
- A: The sampling rate is 60 SPS (samples per second), suitable for low-speed, high-precision data acquisition.
- Q: How many input channels does it have?
- A: It features a single (1) input channel, making it a single-ended input ADC.
- Q: What digital interface does it use?
- A: It uses a standard SPI (Serial Peripheral Interface) for communication with microcontrollers and digital systems.
- Q: What is the operating temperature range?
- A: The device operates over a commercial temperature range of 0°C to 70°C and comes in a 12-WFDFN exposed pad package.
