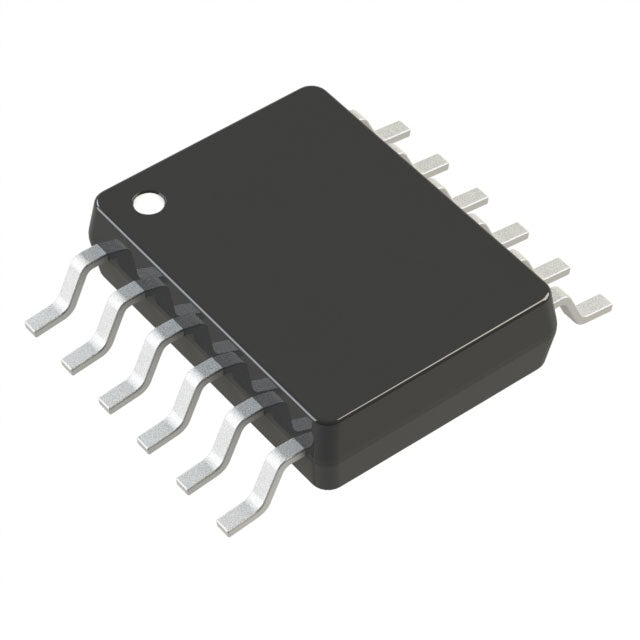

Analog Devices Inc. LTC2460CMS#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.05 | $10.05 |
| 15+ | $2.31 | $34.65 |
| 25+ | $2.26 | $56.50 |
| 50+ | $2.13 | $106.50 |
| 100+ | $1.88 | $188.00 |
| N+ | $0.38 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 60 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 12-MSOP |
| ROHS |  |
The LTC2460CMS#TRPBF is a high-performance 16-bit ADC from Analog Devices, featuring a single input channel and a 60 SPS sampling rate. It is designed for precision measurement applications where accuracy is paramount. The device includes an internal voltage reference and communicates via a standard SPI interface. Housed in a compact 12-TSSOP package, it operates over a commercial temperature range of 0°C to 70°C, making it a versatile choice for industrial and laboratory equipment.
- Exceptional Accuracy: 16-bit resolution provides fine granularity, essential for precise instrumentation.
- Integrated Reference: Reduces external component count and improves long-term stability.
- Standard SPI Interface: Ensures easy integration with most microcontrollers and digital systems.
- Compact TSSOP Package: Saves space on PCBs, ideal for dense designs.
- Low Power Consumption: Suitable for battery-powered and portable applications.
High-Accuracy Temperature Sensing
The 16-bit resolution and 60 SPS rate allow the LTC2460CMS#TRPBF to accurately digitize thermocouple and RTD signals, making it ideal for industrial temperature controllers.
Weigh Scale and Force Measurement
Its high precision and low offset error make it suitable for load cell interfaces in electronic scales, ensuring accurate weight readings.
Data Acquisition for Laboratory Equipment
In lab instruments like pH meters or spectrophotometers, this ADC provides the necessary resolution to capture subtle analog variations.
Battery Monitoring Systems
The low power consumption and SPI interface make it a good fit for monitoring voltage and current in battery management systems for portable devices.
Automotive Sensor Interfaces
Although specified for 0°C to 70°C, it can be used in non-critical automotive test equipment for digitizing pressure or position sensor outputs.
Precision Voltage Monitoring
With its internal reference, it can be used to build precise DC voltage monitors for power supply testing and calibration.
- Q: What is the LTC2460CMS#TRPBF?
- A: It is a 16-bit, single-channel analog-to-digital converter (ADC) with a delta-sigma architecture and SPI interface.
- Q: What is the resolution of this ADC?
- A: The resolution is 16 bits, offering high precision for converting analog signals to digital data.
- Q: What is the sampling rate?
- A: The sampling rate is 60 SPS, which is optimized for high-accuracy, low-speed measurement applications.
- Q: How many channels does it have?
- A: It has 1 input channel, suitable for single-ended input signals.
- Q: What interface does it use?
- A: It uses the SPI (Serial Peripheral Interface) for communication with host processors.
- Q: What package is it available in?
- A: It comes in a 12-TSSOP package with a width of 3.00mm, suitable for compact PCB layouts.
