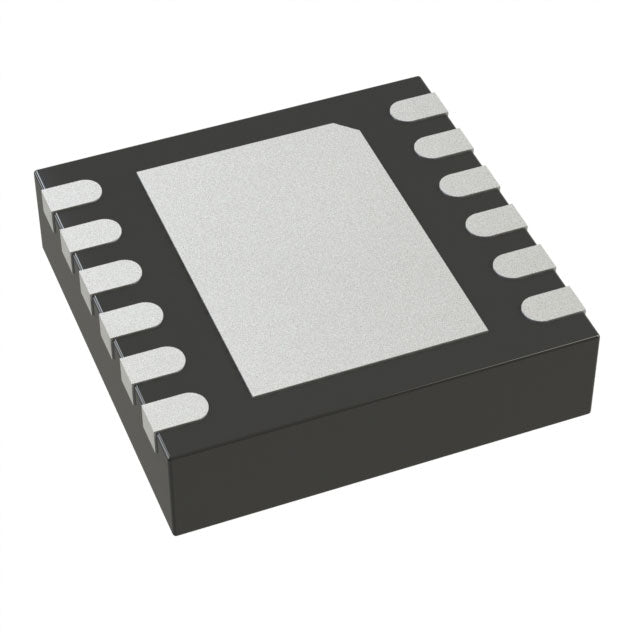

Analog Devices Inc. LTC2461CDD#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.05 | $10.05 |
| 15+ | $2.31 | $34.65 |
| 25+ | $2.26 | $56.50 |
| 50+ | $2.13 | $106.50 |
| 100+ | $1.88 | $188.00 |
| N+ | $0.38 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 60 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | I2C |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | Selectable Address |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x3) |
| ROHS |  |
The LTC2461 is a precision 16-bit ADC from Analog Devices, offering a single input channel and a 60 SPS sampling rate. It features an I2C interface, which simplifies connectivity and reduces pin count. The device includes an internal reference and operates over a 0°C to 70°C temperature range. Its compact 12-WFDFN package makes it ideal for space-constrained applications in medical, industrial, and consumer electronics where high accuracy is required.
- High Resolution: 16-bit accuracy ensures reliable data for critical measurements.
- I2C Interface: Uses only two wires for communication, saving GPIO pins on microcontrollers.
- Internal Reference: Provides a stable voltage reference, reducing external components.
- Small Footprint: The 12-WFDFN package is ideal for miniaturized designs.
- Low Power: Designed for power-sensitive applications, extending battery life.
Smart Sensor Nodes
The I2C interface of the LTC2461CDD#TRPBF allows for easy connection to microcontrollers in smart sensor nodes, enabling precise environmental monitoring with minimal wiring.
Portable Medical Devices
Its 16-bit resolution and low power consumption make it suitable for portable glucose monitors or pulse oximeters, where accuracy and battery life are critical.
Industrial Transmitters
In 4-20mA loop-powered transmitters, this ADC can digitize sensor signals with high precision, and the I2C interface simplifies calibration and configuration.
Data Loggers
For battery-powered data loggers, the 60 SPS rate and I2C interface allow for efficient data collection from temperature or humidity sensors.
Consumer Electronics
In smart home devices like thermostats, the LTC2461 can provide accurate temperature readings for better climate control.
Precision Current Sensing
When paired with a shunt resistor, this ADC can accurately measure current in battery chargers or power management systems.
- Q: What is the LTC2461CDD#TRPBF?
- A: It is a 16-bit analog-to-digital converter (ADC) with a delta-sigma architecture, featuring an I2C interface.
- Q: What is the resolution?
- A: The resolution is 16 bits, providing high precision for analog signal digitization.
- Q: What is the sampling rate?
- A: The sampling rate is 60 SPS, ideal for low-speed, high-accuracy measurements.
- Q: How many channels does it have?
- A: It has 1 input channel, designed for single-ended inputs.
- Q: What interface does it use?
- A: It uses the I2C (Inter-Integrated Circuit) interface, which requires only two wires for communication.
- Q: What is the package type?
- A: It is available in a 12-WFDFN exposed pad package, suitable for compact designs.
LTC2461CDD#TRPBF.pdf
- Q: What is the LTC2461CDD#TRPBF?
- A: It is a 16-bit analog-to-digital converter (ADC) with a delta-sigma architecture, featuring an I2C interface.
- Q: What is the resolution?
- A: The resolution is 16 bits, providing high precision for analog signal digitization.
- Q: What is the sampling rate?
- A: The sampling rate is 60 SPS, ideal for low-speed, high-accuracy measurements.
- Q: How many channels does it have?
- A: It has 1 input channel, designed for single-ended inputs.
- Q: What interface does it use?
- A: It uses the I2C (Inter-Integrated Circuit) interface, which requires only two wires for communication.
- Q: What is the package type?
- A: It is available in a 12-WFDFN exposed pad package, suitable for compact designs.
