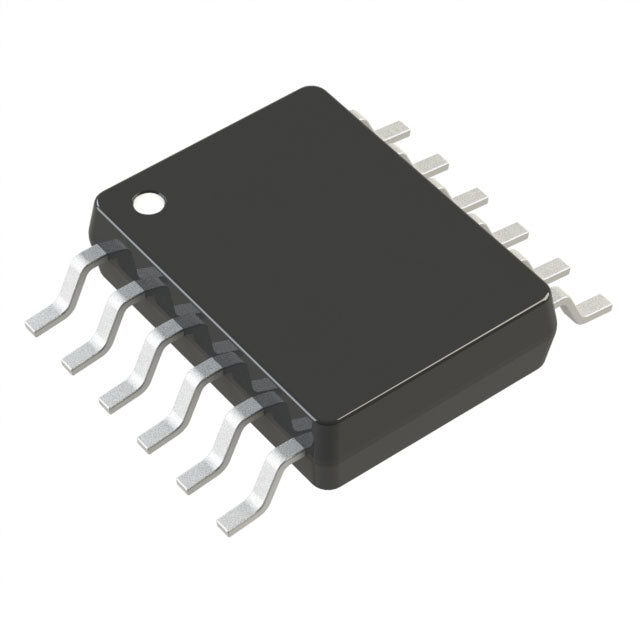

Analog Devices Inc. LTC2461CMS#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.05 | $10.05 |
| 15+ | $2.31 | $34.65 |
| 25+ | $2.26 | $56.50 |
| 50+ | $2.13 | $106.50 |
| 100+ | $1.88 | $188.00 |
| N+ | $0.38 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 60 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | I2C |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | Selectable Address |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 12-MSOP |
| ROHS |  |
The LTC2461CMS#TRPBF is a high-precision 16-bit ADC from Analog Devices, featuring a single channel and a 60 SPS sampling rate. It utilizes an I2C interface for easy integration with digital systems. The device includes an internal reference and operates within a commercial temperature range of 0°C to 70°C. Housed in a compact 12-TSSOP package, it is well-suited for applications requiring high accuracy in a small form factor, such as portable instruments and industrial sensors.
- Precision Conversion: 16-bit resolution ensures accurate representation of analog signals.
- Two-Wire I2C Interface: Simplifies connection and reduces the number of required I/O lines.
- Integrated Reference: Enhances system accuracy and reduces design complexity.
- Space-Saving TSSOP: The 3.00mm width package is excellent for compact PCB layouts.
- Wide Operating Range: Reliable operation from 0°C to 70°C for commercial applications.
Environmental Monitoring Systems
The LTC2461CMS#TRPBF's I2C interface and 16-bit resolution make it perfect for air quality monitors that measure gas sensor outputs with high accuracy.
Battery-Powered Instrumentation
Its low power consumption and small TSSOP package are ideal for handheld devices like digital calipers or laser distance meters.
Industrial Automation Modules
In PLC analog input modules, this ADC can convert 4-20mA current loop signals to digital with high precision, ensuring accurate process control.
Medical Wearables
The compact size and I2C interface allow for integration into wearable health monitors for continuous temperature or bio-signal monitoring.
Smart Agriculture
For soil moisture sensors, the high resolution helps detect small changes in capacitance, enabling efficient irrigation management.
Audio Test Equipment
While not for audio, its precision makes it suitable for measuring DC levels in audio equipment during manufacturing tests.
- Q: What is the LTC2461CMS#TRPBF?
- A: It is a 16-bit, single-channel ADC with a delta-sigma architecture and I2C interface.
- Q: What is the resolution?
- A: The resolution is 16 bits, offering high precision for analog-to-digital conversion.
- Q: What is the sampling rate?
- A: The sampling rate is 60 SPS, suitable for precise, low-frequency measurements.
- Q: How many channels does it have?
- A: It has 1 input channel, ideal for single-ended signals.
- Q: What interface does it use?
- A: It uses the I2C interface, which is a two-wire serial protocol, simplifying PCB routing.
- Q: What is the package?
- A: It comes in a 12-TSSOP package (0.118", 3.00mm Width), which is a small outline package.
