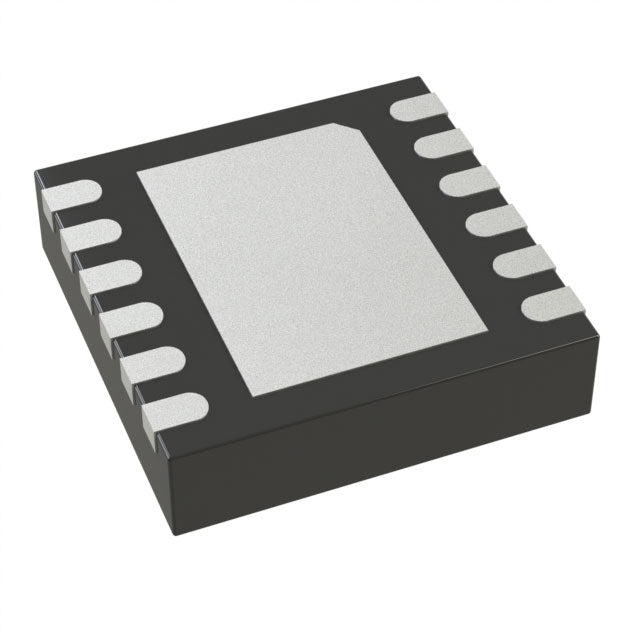

Analog Devices Inc. LTC2461IDD#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.75 | $6.75 |
| 15+ | $6.54 | $98.10 |
| 25+ | $6.40 | $160.00 |
| 50+ | $6.04 | $302.00 |
| 100+ | $5.33 | $533.00 |
| N+ | $1.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 60 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | I2C |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | Selectable Address |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x3) |
| ROHS |  |
The LTC2461IDD#PBF is a 16-bit, single-channel analog-to-digital converter (ADC) from Analog Devices. It features an internal reference and a sampling rate of 60 SPS. The device communicates via an I2C interface. This ADC is designed for space-constrained, precision applications, including compact sensors, medical instrumentation, and industrial monitoring, offering high accuracy in a 12-WFDFN package.
- Space-Saving Package: The 12-WFDFN package is extremely compact, ideal for miniaturized designs.
- High Precision: 16-bit resolution ensures accurate conversion, critical for measurement applications.
- Low Power: Designed for power-sensitive applications, extending battery life in portable devices.
- Easy Integration: The I2C interface simplifies connection to microcontrollers, reducing design complexity.
Compact Sensor Modules
The LTC2461IDD#PBF, with its small 12-WFDFN package, is perfect for compact sensor modules where space is at a premium, such as in IoT devices and wearables.
Precision Data Logging
Its 16-bit resolution and 60 SPS sampling rate make it suitable for precision data logging applications, capturing slow-changing environmental or industrial data accurately.
Medical Instrumentation
In medical devices, this ADC can be used for accurate signal acquisition from biosensors, ensuring reliable patient monitoring.
Industrial Sensing
For industrial sensing applications, the LTC2461IDD#PBF provides high accuracy and stability, making it suitable for process control and automation.
Battery-Powered Devices
The low power consumption of this ADC makes it ideal for battery-powered devices, extending operational life in portable applications.
- Q: What is the LTC2461IDD#PBF?
- A: It is a 16-bit analog-to-digital converter (ADC) with an internal reference, offering high precision in a compact package.
- Q: What is the resolution?
- A: The resolution is 16 bits, providing detailed and accurate digital output.
- Q: What is the sampling rate?
- A: It has a sampling rate of 60 SPS, ideal for low-frequency, high-accuracy applications.
- Q: How many channels does it have?
- A: It features 1 input channel.
- Q: What interface does it use?
- A: It uses the I2C interface for communication, which is simple and efficient.
- Q: What is the package type?
- A: It comes in a 12-WFDFN Exposed Pad package, which aids in thermal dissipation.
LTC2461IDD#PBF.pdf
- Q: What is the LTC2461IDD#PBF?
- A: It is a 16-bit analog-to-digital converter (ADC) with an internal reference, offering high precision in a compact package.
- Q: What is the resolution?
- A: The resolution is 16 bits, providing detailed and accurate digital output.
- Q: What is the sampling rate?
- A: It has a sampling rate of 60 SPS, ideal for low-frequency, high-accuracy applications.
- Q: How many channels does it have?
- A: It features 1 input channel.
- Q: What interface does it use?
- A: It uses the I2C interface for communication, which is simple and efficient.
- Q: What is the package type?
- A: It comes in a 12-WFDFN Exposed Pad package, which aids in thermal dissipation.
