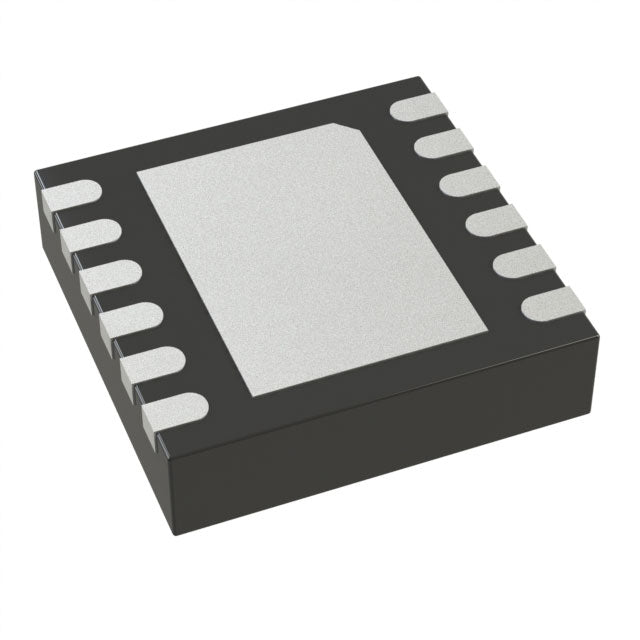

Analog Devices Inc. LTC2462CDD#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.05 | $10.05 |
| 15+ | $2.31 | $34.65 |
| 25+ | $2.26 | $56.50 |
| 50+ | $2.13 | $106.50 |
| 100+ | $1.88 | $188.00 |
| N+ | $0.38 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 60 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x3) |
| ROHS |  |
The LTC2462 is a precision 16-bit ADC from Analog Devices, featuring a single input channel and a 60 SPS sampling rate. It communicates via an SPI interface, ensuring fast and reliable data transfer. The device integrates an internal reference and operates over a 0°C to 70°C temperature range. Its 12-WFDFN exposed pad package is designed for space-efficient and thermally enhanced PCB layouts, making it suitable for industrial, medical, and portable instrumentation.
- High Accuracy: 16-bit resolution delivers precise digital representation of analog signals.
- Fast SPI Interface: Enables efficient communication with microcontrollers at high speeds.
- Internal Reference: Provides a stable and accurate voltage reference, simplifying design.
- Thermally Enhanced Package: The exposed pad improves heat dissipation, enhancing reliability.
- Low Power Operation: Extends battery life in portable applications.
Precision Weigh Scales
The 16-bit resolution and 60 SPS rate of the LTC2462CDD#TRPBF allow for accurate weight measurements in industrial and retail scales.
Process Control Transmitters
In pressure or flow transmitters, this ADC ensures precise digitization of sensor outputs, improving overall system accuracy.
Laboratory Data Acquisition
For benchtop DAQ systems, the SPI interface and high resolution make it a reliable choice for capturing slow-changing signals.
Energy Harvesting Systems
Its low power consumption makes it suitable for monitoring voltage and current in energy harvesting modules.
Automotive Test Equipment
In engine test benches, it can accurately measure temperature and pressure with high precision.
Portable Calibration Tools
The compact WFDFN package and internal reference make it ideal for handheld calibrators that require high accuracy.
- Q: What is the LTC2462CDD#TRPBF?
- A: It is a 16-bit analog-to-digital converter (ADC) with a delta-sigma architecture and SPI interface.
- Q: What is the resolution?
- A: The resolution is 16 bits, providing high precision for measurement applications.
- Q: What is the sampling rate?
- A: The sampling rate is 60 SPS, optimized for accurate low-speed conversions.
- Q: How many channels does it have?
- A: It has 1 input channel, suitable for single-ended input signals.
- Q: What interface does it use?
- A: It uses the SPI (Serial Peripheral Interface) for high-speed data transfer to the host controller.
- Q: What is the package?
- A: It is available in a 12-WFDFN exposed pad package, which aids in thermal dissipation.
