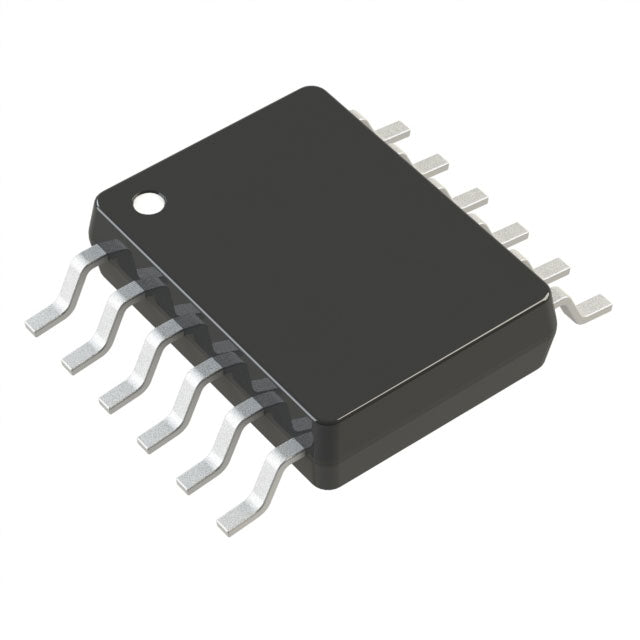

Analog Devices Inc. LTC2462CMS#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.05 | $10.05 |
| 15+ | $2.31 | $34.65 |
| 25+ | $2.26 | $56.50 |
| 50+ | $2.13 | $106.50 |
| 100+ | $1.88 | $188.00 |
| N+ | $0.38 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 60 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 12-MSOP |
| ROHS |  |
The LTC2462CMS#TRPBF from Analog Devices is a high-precision 16-bit analog-to-digital converter (ADC) featuring a single input channel and an internal voltage reference. Operating at a sampling rate of 60 SPS, it is optimized for accurate, low-speed measurements. Its SPI interface ensures straightforward connectivity to digital systems. This ADC is well-suited for precision sensor applications, data acquisition systems, and industrial instrumentation where accuracy is paramount.
- High Precision: 16-bit resolution provides exceptional detail in signal conversion, ideal for demanding measurement applications.
- Integrated Reference: The internal reference simplifies design and reduces external component count, saving board space and cost.
- Simple Digital Interface: The SPI interface enables easy and fast communication with a wide range of microcontrollers and DSPs.
- Compact Package: The 12-TSSOP package is suitable for space-constrained designs.
Precision Sensor Signal Digitization
The LTC2462CMS#TRPBF's 16-bit resolution and internal reference make it ideal for accurately digitizing signals from precision sensors like strain gauges, load cells, and thermocouples, ensuring minimal signal degradation.
Data Acquisition Systems
In industrial data acquisition systems, this ADC's SPI interface allows for easy integration with microcontrollers, while its 60 SPS sampling rate is perfect for capturing slow-changing physical phenomena with high fidelity.
Medical Instrumentation
For medical devices such as patient monitors or diagnostic equipment, the high resolution and low noise performance of the LTC2462CMS#TRPBF ensure reliable and precise readings of biological signals.
Automotive Sensor Interfaces
Although specified for 0°C to 70°C, it can be used in automotive test and measurement setups for bench testing of sensors, providing a stable and accurate conversion of analog signals.
Industrial Process Control
In process control loops, this ADC can digitize signals from transmitters and transducers, enabling precise monitoring and control of temperature, pressure, and flow with its 16-bit accuracy.
Portable Instrumentation
The low power consumption and small TSSOP package make it suitable for portable data loggers and handheld instruments where space and battery life are critical.
- Q: What type of ADC is the LTC2462CMS#TRPBF?
- A: It is a 16-bit analog-to-digital converter with an internal reference, designed for precision measurement applications.
- Q: What is the resolution of this ADC?
- A: The LTC2462CMS#TRPBF offers 16-bit resolution, providing high precision for demanding applications.
- Q: What is the sampling rate?
- A: The sampling rate is 60 SPS (samples per second), suitable for low-speed, high-accuracy measurements.
- Q: How many input channels does it have?
- A: It features a single input channel (1 channel).
- Q: What digital interface does it use?
- A: It uses the SPI (Serial Peripheral Interface) for communication with microcontrollers or digital systems.
- Q: What package is available?
- A: It comes in a 12-TSSOP (0.118", 3.00mm Width) package.
