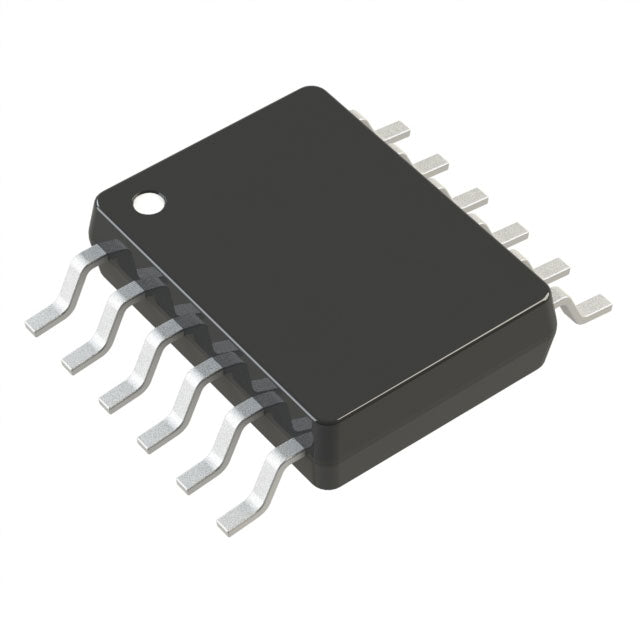

Analog Devices Inc. LTC2463CMS#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.05 | $10.05 |
| 15+ | $2.31 | $34.65 |
| 25+ | $2.26 | $56.50 |
| 50+ | $2.13 | $106.50 |
| 100+ | $1.88 | $188.00 |
| N+ | $0.38 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 60 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | I2C |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | Selectable Address |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 12-MSOP |
| ROHS |  |
The LTC2463CMS#TRPBF is a 16-bit analog-to-digital converter from Analog Devices, featuring a single channel and an internal reference. It operates at a sampling rate of 60 SPS and communicates via the I2C interface, making it easy to integrate into digital systems. Housed in a compact 12-TSSOP package, this ADC is designed for precision applications such as sensor signal conditioning, data acquisition, and medical instrumentation.
- High Accuracy: 16-bit resolution delivers precise digital representation of analog signals.
- I2C Interface: Simplifies connectivity and allows multiple devices on a single bus, reducing wiring.
- Internal Reference: Eliminates the need for external reference components, simplifying design.
- Compact Form Factor: The 12-TSSOP package is ideal for space-constrained applications.
Precision Sensor Digitization
The LTC2463CMS#TRPBF's 16-bit resolution and internal reference make it perfect for digitizing outputs from precision sensors like RTDs and thermistors with high accuracy.
Data Acquisition Systems
With its I2C interface and 60 SPS sampling rate, this ADC is well-suited for multi-sensor data acquisition systems where multiple devices share a common bus.
Medical Instrumentation
In portable medical devices, the low power and high precision of this ADC ensure reliable monitoring of vital signs and other biological signals.
Industrial Automation
For industrial control and monitoring, this ADC can accurately convert signals from pressure and flow transmitters, enabling precise process control.
Battery-Powered Devices
The low power consumption and small TSSOP package make it ideal for battery-powered instruments and remote sensors.
Laboratory Equipment
In benchtop lab equipment, the high resolution and stable internal reference provide trustworthy measurements for scientific experiments.
- Q: What is the LTC2463CMS#TRPBF?
- A: It is a 16-bit analog-to-digital converter (ADC) with an internal reference, designed for precision measurement.
- Q: What is the resolution of this ADC?
- A: It provides 16-bit resolution, ensuring high accuracy in signal conversion.
- Q: What is the sampling rate?
- A: The sampling rate is 60 SPS, suitable for precise, low-frequency measurements.
- Q: How many channels does it have?
- A: It has a single input channel.
- Q: What interface does it use?
- A: It uses the I2C interface, which is ideal for systems with limited pin counts.
- Q: What is the package type?
- A: It is available in a 12-TSSOP (0.118", 3.00mm Width) package.
