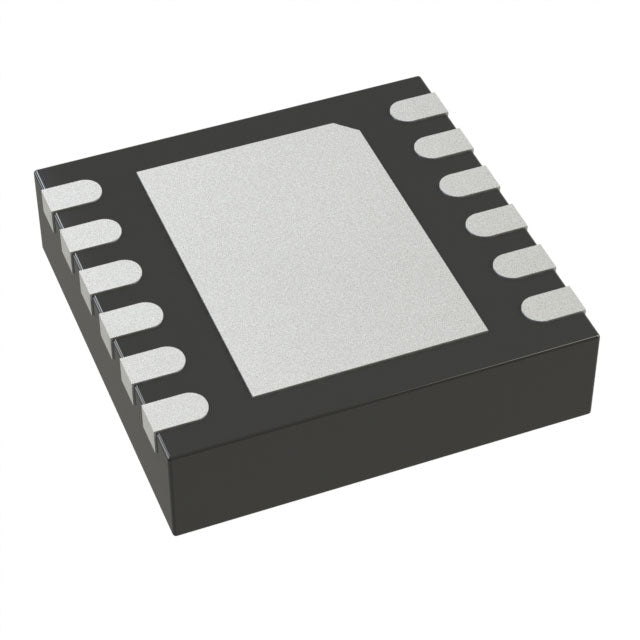

Analog Devices Inc. LTC2470CDD#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.40 | $10.40 |
| 15+ | $2.39 | $35.85 |
| 25+ | $2.34 | $58.50 |
| 50+ | $2.21 | $110.50 |
| 100+ | $1.95 | $195.00 |
| N+ | $0.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 833 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x3) |
| ROHS |  |
The Analog Devices LTC2470CDD is a 16-bit analog-to-digital converter (ADC) with a sampling rate of 833 SPS. It features a single input channel and an internal voltage reference, simplifying circuit design. The device communicates via an SPI interface and operates over a 0°C to 70°C temperature range. Housed in a compact 12-WFDFN package, it is designed for precision measurement applications, including industrial sensors, data acquisition, and medical instrumentation.
- High Resolution: 16-bit resolution provides excellent accuracy for precision measurement applications, capturing fine signal details.
- Integrated Reference: The internal reference eliminates the need for external components, reducing board space and design complexity.
- Low Power Consumption: Ideal for battery-powered and portable devices, extending operational life.
- Compact Package: The 12-WFDFN package is space-efficient, suitable for dense PCB layouts.
Precision Sensor Measurement
The 16-bit resolution and internal reference make the LTC2470CDD ideal for precision measurement of slow-changing signals from sensors like thermocouples, RTDs, and strain gauges in industrial and laboratory equipment.
Data Acquisition Systems
For multi-channel data acquisition systems, this ADC provides accurate digitization of low-frequency signals, ensuring high fidelity in applications such as environmental monitoring and process control.
Medical Instrumentation
The high resolution and low noise performance are suitable for medical devices like patient monitors and diagnostic equipment, where accurate signal conversion is critical.
Weigh Scales and Load Cells
The LTC2470CDD's high resolution and stability make it an excellent choice for electronic weighing scales and force measurement systems, providing precise and repeatable readings.
Battery-Powered Devices
With its low power consumption and internal reference, this ADC is well-suited for battery-powered instruments, extending operational life in portable data loggers and field devices.
- Q: What is the resolution of the LTC2470CDD?
- A: The LTC2470CDD is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: It has a sampling rate of 833 SPS (samples per second).
- Q: How many input channels does it have?
- A: It features a single input channel.
- Q: What interface does the LTC2470CDD use?
- A: It uses an SPI interface for digital communication.
- Q: What is the reference type?
- A: It has an internal reference, simplifying the design.
- Q: What is the package type?
- A: It is available in a 12-WFDFN exposed pad package.
