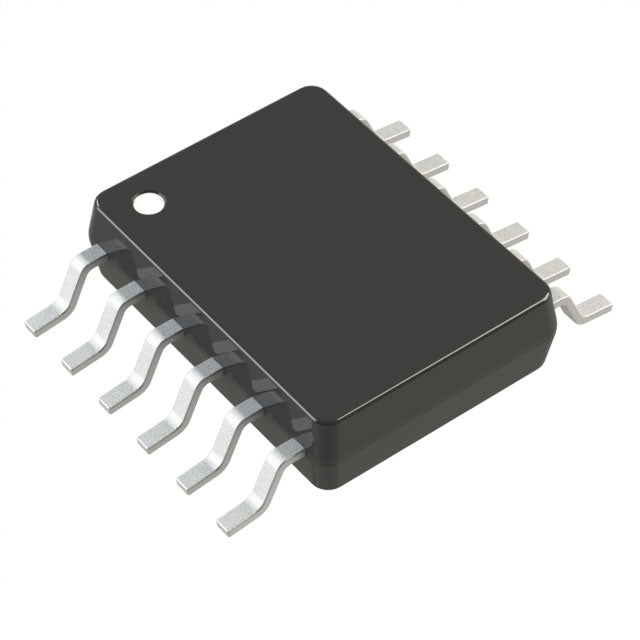

Analog Devices Inc. LTC2470CMS#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.40 | $10.40 |
| 15+ | $2.39 | $35.85 |
| 25+ | $2.34 | $58.50 |
| 50+ | $2.21 | $110.50 |
| 100+ | $1.95 | $195.00 |
| N+ | $0.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 833 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 12-MSOP |
| ROHS |  |
The Analog Devices LTC2470CMS is a 16-bit analog-to-digital converter (ADC) offering a sampling rate of 833 SPS. It includes a single input channel and an internal reference, simplifying system design. The device uses an SPI interface for communication and operates within a 0°C to 70°C temperature range. Packaged in a 12-TSSOP, this ADC is designed for precision applications such as industrial process control, weighing systems, and environmental monitoring.
- High Precision: 16-bit resolution ensures accurate conversion of analog signals, critical for measurement and control systems.
- Internal Reference: Reduces external component count, saving board space and simplifying the design process.
- Low Power: Suitable for battery-operated and low-power applications, enhancing system efficiency.
- Standard Package: The 12-TSSOP package is widely used and easy to integrate into various PCB designs.
Industrial Process Control
The 16-bit resolution and 833 SPS sampling rate of the LTC2470CMS are well-suited for industrial process control, enabling precise monitoring of temperature, pressure, and flow in automated systems.
Precision Weighing Systems
Its high resolution and stability make it ideal for precision weighing scales and force sensors, ensuring accurate and reliable measurements in commercial and industrial settings.
Environmental Monitoring
For environmental data loggers, this ADC provides the accuracy needed to measure slow-changing parameters like humidity, air quality, and soil moisture over extended periods.
Laboratory Instruments
The LTC2470CMS is suitable for laboratory equipment such as spectrophotometers and pH meters, where high-precision analog-to-digital conversion is essential for accurate results.
Energy Harvesting Systems
With its low power consumption, this ADC can be used in energy harvesting applications, efficiently converting small sensor signals in self-powered wireless sensor nodes.
- Q: What is the resolution of the LTC2470CMS?
- A: The LTC2470CMS is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It operates at a sampling rate of 833 SPS.
- Q: How many channels does it have?
- A: It has a single input channel.
- Q: What interface does it use?
- A: It uses an SPI interface.
- Q: What is the reference type?
- A: It features an internal reference.
- Q: What is the package type?
- A: It comes in a 12-TSSOP package.
