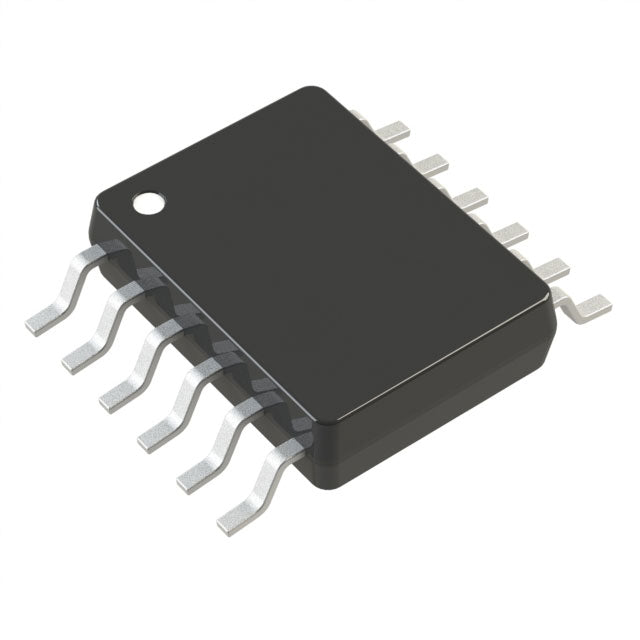

Analog Devices Inc. LTC2471CMS#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.40 | $10.40 |
| 15+ | $2.39 | $35.85 |
| 25+ | $2.34 | $58.50 |
| 50+ | $2.21 | $110.50 |
| 100+ | $1.95 | $195.00 |
| N+ | $0.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 833 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | I2C |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | Selectable Address |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 12-MSOP |
| ROHS |  |
The LTC2471CMS#TRPBF is a 16-bit analog-to-digital converter from Analog Devices, offering a sampling rate of 833 SPS. It features a single input channel and an integrated internal reference, simplifying circuit design. Communication is handled via the I2C interface, making it easy to interface with microcontrollers. Housed in a 12-TSSOP package, this ADC is suitable for precision industrial, medical, and instrumentation applications where accuracy and reliability are paramount.
- Accurate 16-bit Conversion: Delivers high-resolution data essential for precision measurement applications.
- Internal Reference: Reduces external component count and improves overall system accuracy and stability.
- I2C Interface: Enables straightforward integration with standard digital systems, saving GPIO pins.
- Industry-Standard Package: The 12-TSSOP package is widely used and easy to solder, facilitating manufacturing.
High-Resolution Data Logging
The 16-bit resolution and 833 SPS rate make the LTC2471CMS#TRPBF perfect for data loggers that need to capture environmental or industrial data with high accuracy over long periods.
Weigh Scale Systems
In electronic weighing scales, the high resolution ensures precise weight measurements, while the I2C interface allows for direct connection to the system's main processor for easy calibration and data retrieval.
Battery Management Systems
For monitoring battery voltage and current in portable devices, this ADC's precision and low power consumption help extend battery life while providing accurate state-of-charge information.
Factory Automation Sensors
The LTC2471CMS#TRPBF can digitize outputs from pressure, temperature, and flow sensors in factory automation, providing reliable data for process control and quality assurance.
Laboratory Instruments
Benchtop multimeters and precision measurement equipment benefit from the 16-bit accuracy and stable internal reference, ensuring repeatable and trustworthy results in R&D environments.
- Q: What is the LTC2471CMS#TRPBF?
- A: It is a 16-bit analog-to-digital converter (ADC) from Analog Devices with an internal reference.
- Q: What is the resolution?
- A: The resolution is 16 bits.
- Q: What is the sampling rate?
- A: The sampling rate is 833 SPS.
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What interface does it support?
- A: It supports the I2C interface.
- Q: What is the package type?
- A: It is available in a 12-TSSOP package.
